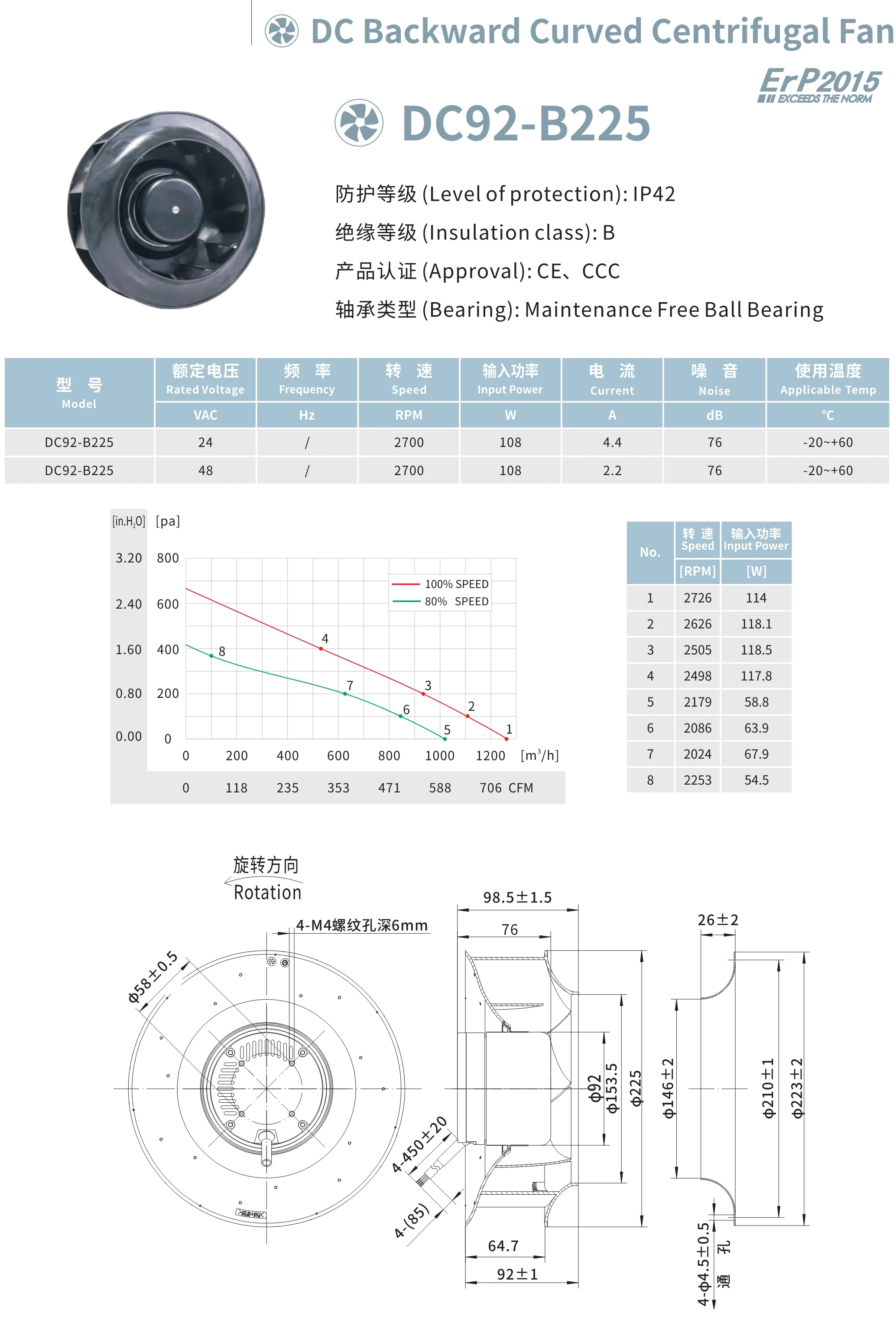

Level of protection: IP42
Insulation class: B
Approval: CE、CCC
Bearing: Maintenance Free Ball Bearin
Quality Control
From selecting raw material, making motor parts, to assembling final product, Pengfei motor values every detail of the motor producing process. Full sets of equipments and skilled staffs also make the quality control more accurate. 100% test and inspection achieve good quality and satisfy our customers greatly.
Specification
Volatge |
Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temperature | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | Min/Max(℃) |
| YWF.B2S-225-089AB0A | 115/120 | 60 | 2.07 | 229 | 2880 | 28 | 1180/695 | 80 | (2) | -30/+60 |
| YWF.B2S-225-089AB00 | 220/230 | 50 | 0.66 | 145 | 2645 | 6 | 1080/635 | 76 | (1) | -30/+60 |
| 220/230 | 60 | 0.96 | 205 | 2890 | 6 | 1180/695 | 78 | (2) | -30/+60 | |
| YWF.B4S-225-089AB0A | 115/120 | 60 | 0.43 | 51 | 1660 | 6 | 770/450 | 63 | (5) | -30/+60 |
| YWF.B2T-225-089AB00 | 380/400 | 50 | 0.20 | 115 | 2390 | / | 1000/620 | 71 | (3) | -30/+60 |
| 380/400 | 60 | 0.26 | 156 | 2460 | / | 1000/650 | 72 | (4) | -30/+60 |
--EC DC Model Numbering (for example)--
Related Product
Please kindly click on the model you want for more details:
FAQ
1. Are you a trade company or a manufacturer?
A: We are manufacturer in China. We have ISO, CCC, ROHS, CE certification. OEM & ODM services are available.
2. What is your MOQ?
A: Our minimum order quantity is 30pcs.
3.What is your delivery date?
A: The delivery date is about 25 days after receipt of payment.
4. What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
5. Can you send free samples?
A: Yes, free samples are available, you just need to pay the express fee. You can provide your a/c like DHL, UPS or you can call your courier to pick up from our factory.
