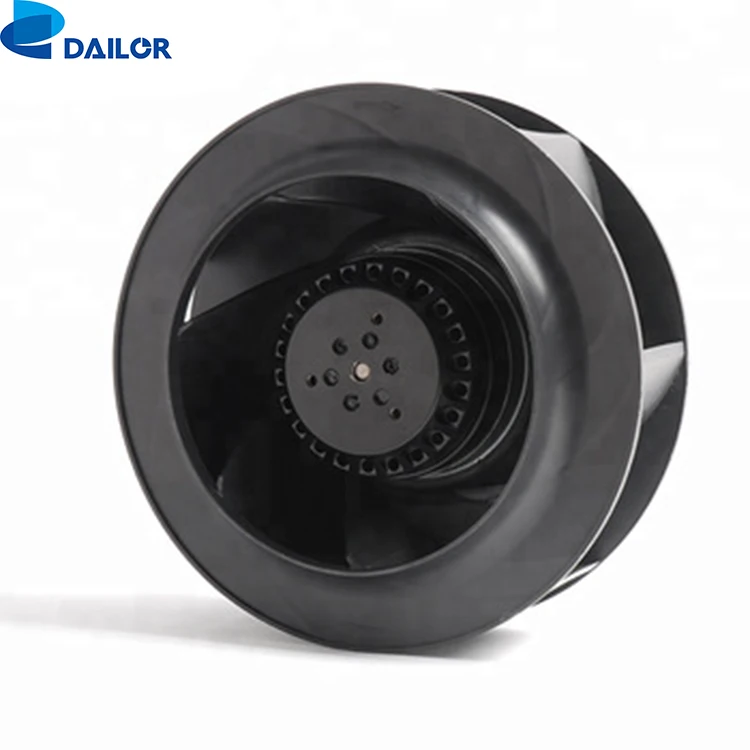

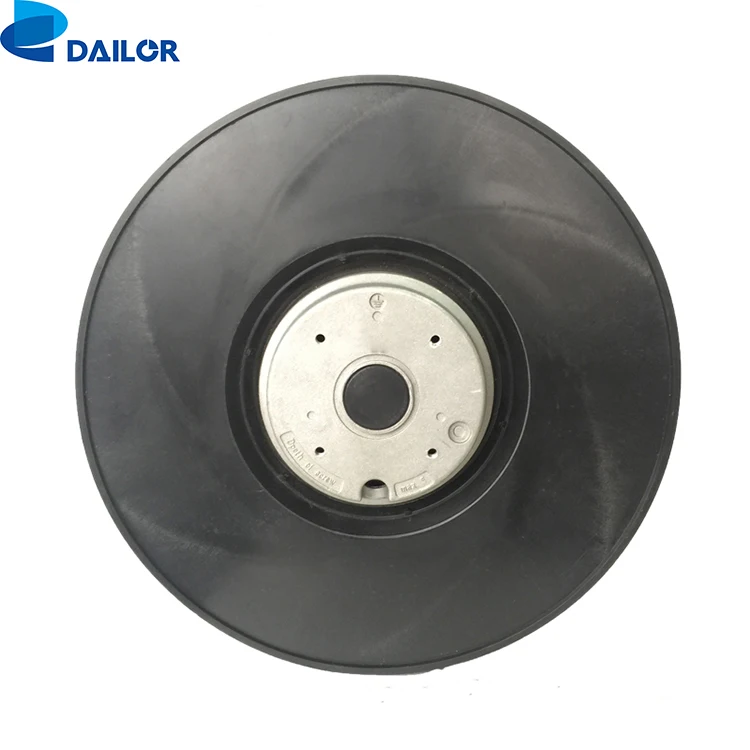

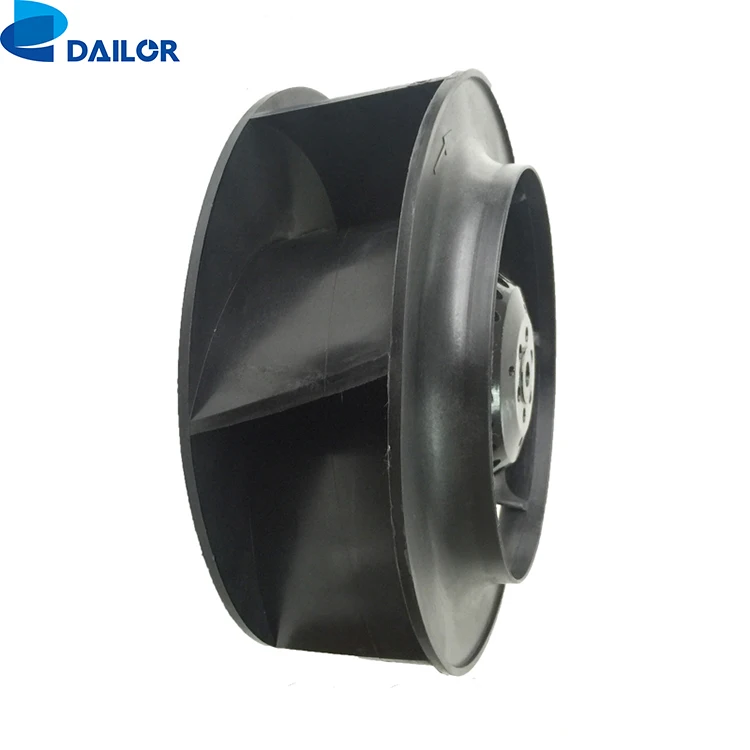

355mm AC Air purification fan Floor ventilation fan Backward centrifugal fan

355mm AC Air purification fan Floor ventilation fan Backward centrifugal fan

-Backward Centrifugal Fan Sizes: 133mm ~ 560mm
-Forward Centrifugal Fan Sizes: 120mm ~ 250mm
-Single Inlet Blower Fan Sizes: 120mm ~ 200mm
-Double Inlet Blower Fan Sizes: 120mm ~ 146mm
-Axial Fan Sizes: 200mm ~ 710mm

Overview
Recommended Products

All kinds of Fans

Backward Centrifugal Fan Sizes	133mm ~ 560mm
Forward Centrifugal Fan Sizes	120mm ~ 250mm
Single Inlet Blower Fan Sizes	120mm ~ 200mm
Double Inlet Blower Fan Sizes	120mm ~ 146mm
Axial Fan Sizes	200mm ~ 710mm
Inline Duct Fan Sizes	100mm ~ 315mm
Voltage	AC Input: 115V, 120V, 220V, 230V, 380V, 400V
	DC Input: 12V, 24V, 48V
	EC Input: 220V, 230V, 380V, 400V
Power	Up to 2300W
Speed	Up to 4528RPM
Airflow	Up to 24000m3/h
Speed Control	Speed controller (AC) or 0-10V/PWM Input (DC&EC)
Approvals	CCC, CE, RoHs, UL, CUL

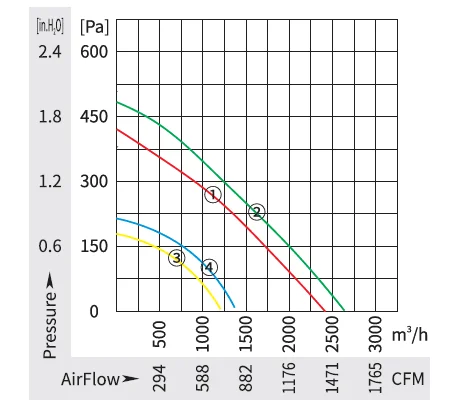

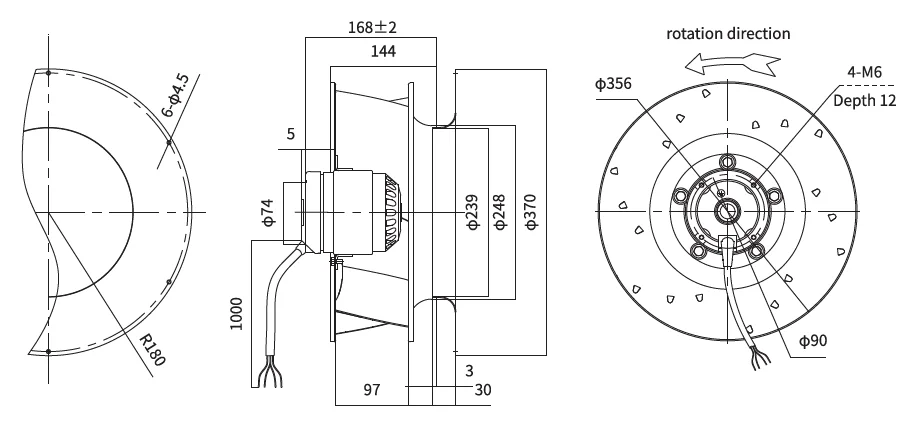

Size&Curve of φ355mm

Specification

	Volatge	Frequency	Current	Input Power	Speed	Capacitor	Air Flow	Noise	Curve No.	Operating Temperature
Model No.	V	Hz	A	W	RPM	μF	m³/h/CFM	dB(A)	#	Min/Max(℃)
YWF.B4S-355-169AB10	220/230	50	0.88	200	1340	8	2500/1475	61	(1)	-30/+60
YWF.B4S-355-169AB10	220/230	60	1.25	280	1380	8	2650/1494	62	(2)	-30/+60
YWF.B4T-355-169AB10	380/400	50	0.53	200	1380	/	2540/1494	61	(1)	-30/+60

AC Model Numbering

355mm AC Air purification fan Floor ventilation fan Backward centrifugal fan manufacture

Application

Air purifier
Ventilating Units
Air conditioner Terminals
Air conditioner Fans
Floor Ventilation
Heat pumps
Ground source heat pumps
Air source heat pumps
Roof fans
Filtration
FFU
......

Related products

EC102-B355-2 EC92-B310-02

YWF.A6T-800S-5FISP0 YWF.A6T-900S-7FIS10 200 250mm-1

AC Forward-250-mm Forward-Curved-Fan-133

Please kindly click on the model you want for more details:

AC Backward centrifugal fan:

133mm Backward Centrifugal Fan 175mm Backward Centrifugal Fan

180mm Backward Centrifugal Fan 190mm Backward Centrifugal Fan

220mm Backward Centrifugal Fan 225*75mm Backward Centrifugal Fan

225*89mm Backward Centrifugal Fan 250mm Backward Centrifugal Fan

280*80mm Backward Centrifugal Fan 280*135mm Backward Centrifugal Fan

315mm Backward Centrifugal Fan 355*144mm Backward Centrifugal Fan

355*169mm Backward Centrifugal Fan

400*147mm Backward Centrifugal Fan with Aluminum alloy impeller

400*188mm Backward Centrifugal Fan with Aluminum alloy impeller

400*188mm Backward Centrifugal Fan with Magnalium alloy impeller

450mm Backward Centrifugal Fan with 6 motor poles three-phase

450mm Backward Centrifugal Fan with 4/6 motor poles single/three-phase

500mm Backward Centrifugal Fan

560mm Backward Centrifugal Fan

EC Backward centrifugal fan:

133mm backward centrifugal fan 175mm backward centrifugal fan

190mm backward centrifugal fan 220mm backward centrifugal fan

225mm backward centrifugal fan 250mm backward centrifugal fan

280mm backward centrifugal fan 310mm backward centrifugal fan

355mm backward centrifugal fan

AC Forward Centrifugal Fan:

120mm Centrifugal blower fan-single inlet 120mm Centrifugal blower fan-double inlets

133mm Centrifugal blower fan-single inlet 133mm Centrifugal blower fan-double inlets

140mm Centrifugal blower fan-single inlet 146mm Centrifugal blower fan-double inlets

150mm Centrifugal blower fan-single inlet

160mm Centrifugal blower fan-single inlet

180mm Centrifugal blower fan-single inlet

200mm Centrifugal blower fan-single inlet

AC Duct Fan:

100mm Inline duct fan 125mm Inline duct fan

150mm Inline duct fan 160mm Inline duct fan

200mm Inline duct fan 250mm Inline duct fan

300mm Inline duct fan 315mm Inline duct fan

355mm AC Air purification fan Floor ventilation fan Backward centrifugal fan supplier

Quality Control

From selecting raw material, making motor parts, to assembling final product, Pengfei motor values every detail of the motor producing process. Full sets of equipments and skilled staffs also make the quality control more accurate. 100% test and inspection achieve good quality and satisfy our customers greatly.

1. Are you a trade company or a manufacturer?
A: We are manufacturer in China. We have ISO, CCC, ROHS, CE certification. OEM & ODM services are available.

2. What is your MOQ?
A: Our minimum order quantity is 30pcs.

3.What is your delivery date?
A: The delivery date is about 25 days after receipt of payment.

4. What is your payment terms?
A: T/T 30% deposit in advance and 70% balance before shipment.

5. Can you send free samples?
A: Yes, free samples are available, you just need to pay the express fee. You can provide your a/c like DHL, UPS or you can call your courier to pick up from our factory.
