1/2HP 110-120V/208-230V/277V 1075RPM Replacement Constant Torque ECM X-13 5SME39HXL015 5SME39HXL015A KMSAH013C02 ECM Motor

Product Overview (Brief Summary)

HVAC service technicians replacing a failed 1/2HP blower motor often need a unit that matches the exact mounting and wiring of the original. This 1/2HP ECM motor is built for that job: it uses the standard NEMA 48 frame with identical mounting hole patterns, belly-band grooves and harness connectors, so it serves as a direct drop-in replacement for legacy constant torque units such as the Genteq X13, 5SME39HXL015, 5SME39HXL015A and KMSAH013C02. A tri-voltage ECM motor design accepts 110-120V, 208-230V and 277V inputs, which lets one replacement blower motor cover equipment on different regional grids. This constant torque ECM motor from Zhongshan Pengfei Electric Appliance Co., Ltd. runs at 1075RPM, uses 24VAC tap control for airflow adjustment and delivers dependable HVAC blower motor performance for residential and light commercial air handlers.

Detailed Description

The change from PSC motors to ECM technology has improved how blower systems handle airflow. This constant torque ECM motor uses permanent magnet brushless DC (BLDC) construction as a variable speed motor, and its controller adjusts commutation continuously so torque stays close to the set point as duct static pressure varies. For a furnace blower motor or air handler blower motor, that behavior keeps air delivery steady through heating and cooling cycles while limiting the efficiency loss common in fixed-speed designs.

Voltage selection is handled at installation: the universal voltage ECM motor design accepts 110-120V, 208-230V and 277V with a single wiring layout, so distributors can stock one universal voltage ECM motor SKU for equipment that runs on different supplies. Each unit is produced in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs, and every component from the stator windings to the D-shaped output shaft is checked against structural and electrical tolerances before shipment. Five discrete 24VAC speed taps let the installer match airflow to the blower wheel as a multi-speed ECM motor, and the NEMA 48 frame fits existing residential furnace and light commercial air handler housings.

Key Features & Practical Benefits

• Three-Grid Coverage in One Unit: A single motor accepts 110-120V, 208-230V and 277V, letting distributors carry one stock number for equipment on different regional grids.
• Drops In Where These Units Served: This replacement blower motor matches the mounting and wiring of legacy 5SME39HXL015, 5SME39HXL015A and KMSAH013C02 units plus Genteq X13 models, using the standard NEMA 48 frame and belly-band grooves.
• Five-Tap Constant Torque Control: Five 24VAC taps (S1 to S5) run in constant torque mode, and 0-10V analog or PWM control is available for advanced integrations.
• Low-Noise Running: Smooth electronic commutation and a balanced rotor limit vibration and noise, which suits homes and light commercial spaces.
• Onboard Fault Protection: Thermal overload monitoring, locked-rotor protection and surge suppression are included for safer operation during power disturbances.

Technical Advantages & Engineering Expertise

This unit is built for technicians who need a reliable swap across different supply voltages, with attention to thermal management, mechanical fit and operational stability.

1. Overheat Management: Winding temperature sensing plus surge suppression work together to protect this 1/2HP ECM motor when cooling or heating demand peaks.
2. Steady Air Delivery: The controller adjusts commutation as duct static pressure shifts, so this HVAC ECM motor holds blower output closer to target than fixed-speed PSC units.
3. Custom Engineering Support: Custom shafts, keyways, private label branding and tailored connectors are available through the in-house R&D center.

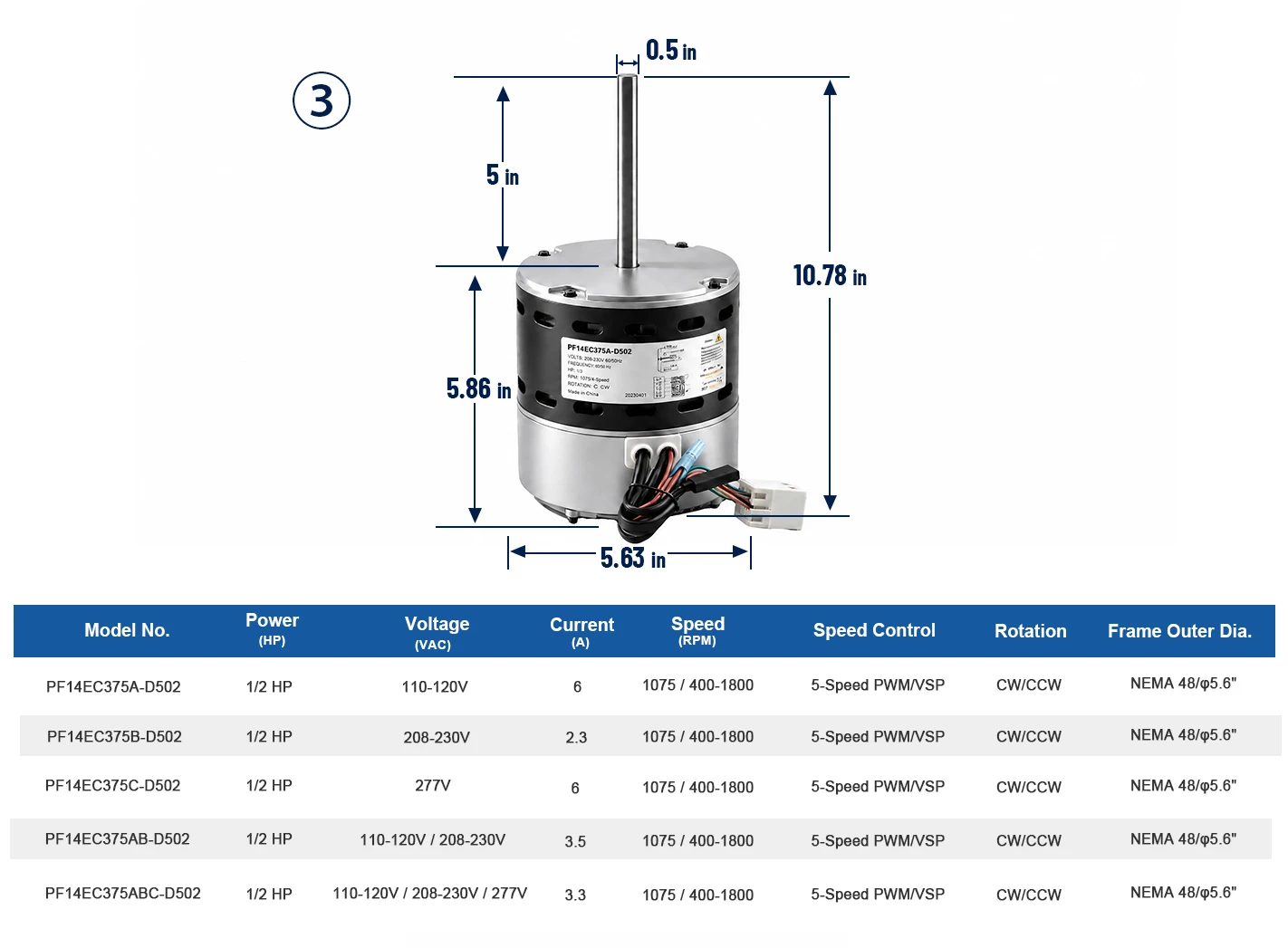

Technical Specifications Table

Application Scenarios

Typical installations for this 1/2HP ECM motor include:

• Furnace Air Movement: Serves upflow, downflow and horizontal furnaces as a direct drop-in replacement blower motor, where a dependable furnace blower motor keeps heated air moving through the home.
• Air Handler and Fan Coil Service: Fits AHU and fan coil blower motor duty in homes and light commercial buildings, covering older constant torque units in the 5SME39HXL and KMSAH series.
• Condenser Duty: Supports outdoor split-system air conditioners and heat pumps where a reliable condenser fan motor keeps the system moving air.
• OEM Integration: Integrates into new climate equipment where precise torque regulation is required.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, a reliable ECM motor protects brand reputation and reduces expensive field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has served the HVAC industry for over 20 years, holds over 100 patents and is a National High-Tech Enterprise. Tooling, metal stamping, injection molding and motor assembly are handled in-house at a 25,000-square-meter facility with dedicated testing labs, and sales reach more than 20 countries and regions. ISO 9001, UL, CCC, CE and RoHS documentation should be confirmed against the specific model.

Sample evaluation programs with flexible MOQ let customers test this tri-voltage ECM motor before committing to volume orders. Engineering support covers custom wiring, private labeling and supply agreements, helping distributors and OEM builders align this 1/2HP ECM motor with furnace blower motor and air handler blower motor programs.
