1/3HP 208-230V 1075RPM HVAC Direct Replacement ECM X-13 10858 10860 10865 Brushless Air Handling Furnace Blower EC Motor

Product Overview (Brief Summary)

When an air handler or furnace blower needs a 208-230V upgrade, this 1/3HP ECM motor replaces the X13, 10858, 10860 and 10865 series with a standard NEMA 48 frame and unchanged mounting. It turns at 1075RPM and uses the same mounting hole patterns, belly-band grooves and harness connectors as the units it replaces, for a quick bracket-free swap. Constant torque control with 24VAC taps keeps airflow steady through heating cycles, and the brushless design keeps noise low. Built by Zhongshan Pengfei Electric Appliance Co., Ltd., this 208-230V ECM motor offers quiet operation and long service life as a multi-voltage replacement blower motor.

Detailed Description

Modern HVAC equipment increasingly relies on electronically commutated motor (ECM) designs instead of permanent split capacitor (PSC) motors, and this 1/3HP ECM motor lets a service shop make the change without reworking the bracket. Brushless direct current (BLDC) construction removes the brushes found in universal motors, so the rotor is driven electronically with fewer wearing parts. The controller adjusts torque as static pressure changes, so this 1/3HP ECM motor keeps airflow steady and helps this HVAC blower motor hold steadier airflow through cooling and heating cycles, the reason constant torque motor designs have become standard in modern equipment. For equipment wired at 208-230V, this ECM motor is a drop-in path to variable speed motor behavior without replacing the whole air handler.

Manufacturing takes place in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs; stator windings, bearings and the D-shaped output shaft are checked on each ECM motor against structural and electrical tolerances before shipment. Five 24VAC speed taps let technicians set airflow on this ECM motor, and optional 0-10V analog or PWM control suits advanced system integrations. Multi-voltage input covers 110-120V, 208-230V and 277V, so this ECM motor family covers the voltages a contractor commonly meets. Whether it is a furnace blower motor or an air handling unit, this 1/3HP 208-230V ECM motor is designed for daily climate duty as a replacement blower motor.

Key Features & Practical Benefits

• Direct Replacement Fit: The NEMA 48 frame with identical mounting patterns, belly-band grooves and harness connectors covers Genteq X13, 10858, 10860, 10865, Emerson and US Motors blowers without mechanical modification, so it works as a replacement blower motor across these series.
• Constant Torque Tap Control: Five 24VAC taps (S1 to S5) operate in constant torque mode. A constant torque ECM holds its torque setpoint as static pressure varies, which means this HVAC blower motor keeps moving the same volume of air rather than slowing noticeably. Optional 0-10V and PWM control is available.
• 208-230V Dual Voltage: This ECM motor is set up for 208-230V service, with multi-voltage input covering 110-120V, 208-230V and 277V where required.
• Quiet Brushless Operation: Electronic commutation and balanced construction limit vibration and noise on this ECM motor, suiting homes and light commercial buildings.
• Safety Protections: Locked-rotor protection, thermal overload sensing and surge suppression provide a solid safety net for this ECM motor in daily service.

Technical Advantages & Engineering Expertise

An air-moving component has to balance thermal management, mechanical fit and operational stability, and this ECM motor is engineered around all three.

1. Thermal Management: Thermal sensing on the windings plus surge suppression shields this ECM motor from overload spikes during peak season.
2. Airflow Consistency: The ECM controller compensates for static pressure changes, which keeps the furnace blower delivering even air movement.
3. OEM Flexibility: Custom shafts, keyways, private labeling and tailored wiring are available for proprietary equipment programs built around this ECM motor.

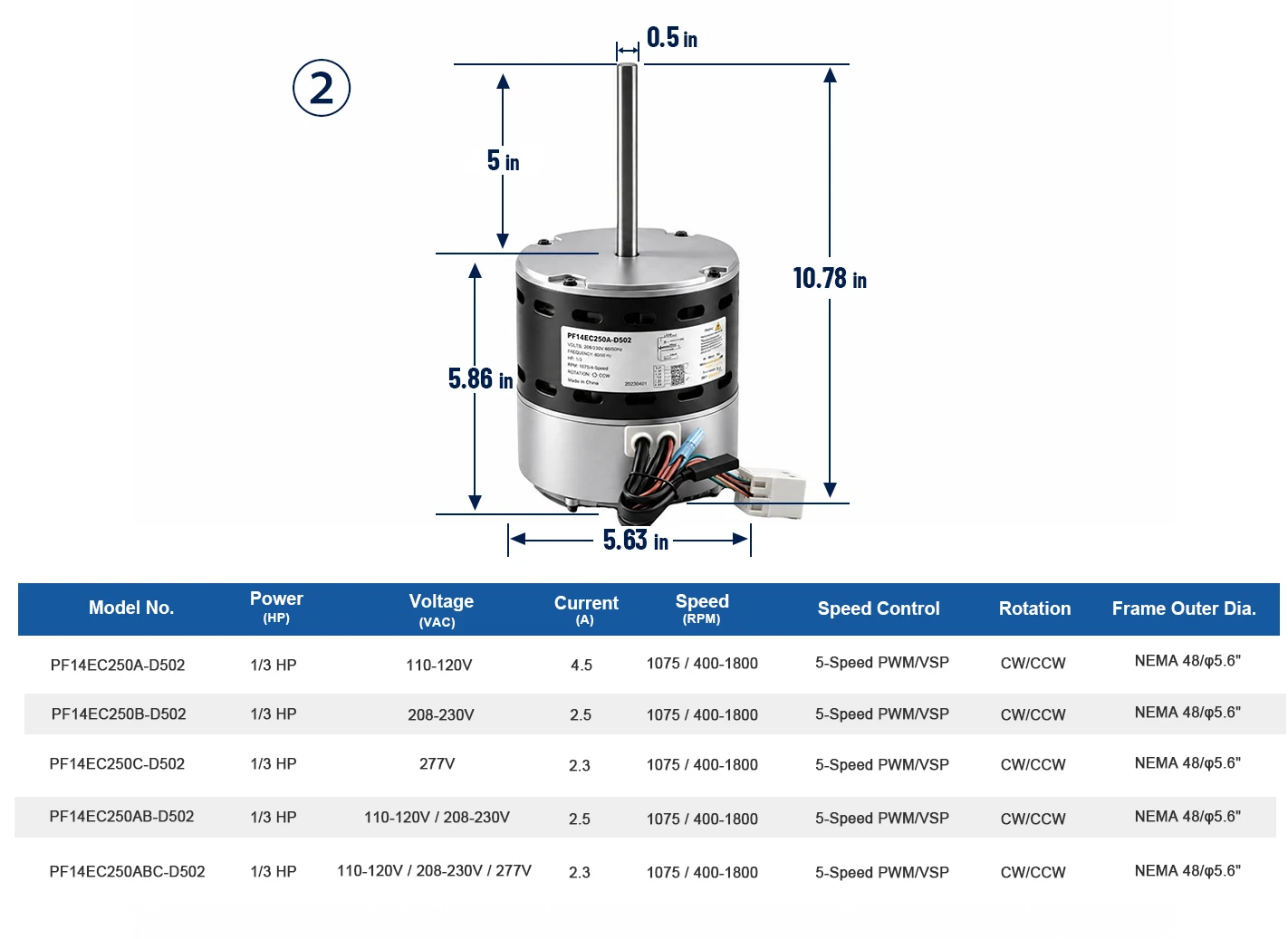

Technical Specifications Table

Application Scenarios

This 24VAC tap control motor fits the main air-moving roles in HVAC equipment:

• 208-230V Furnace Blowers: Direct drop-in replacement blower motor for residential and light commercial furnaces running 208-230V service, where a constant torque motor keeps airflow steady.
• Air Handling Units: Serves air handler blowers that need dependable airflow at 1075RPM from a constant torque motor.
• Condenser Fan Duty: Fits outdoor air conditioner and heat pump condenser fans as a dependable condenser fan motor in dual-voltage installations.
• OEM Programs: Integrates into new climate equipment requiring precise torque regulation from a constant torque motor.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. In-house tooling, metal stamping, injection molding and motor assembly are supported by a 25,000-square-meter facility and dedicated testing labs, and products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation.

Pilot testing programs with flexible MOQ and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume, and engineering support covers custom wiring, private labeling and volume supply agreements for this ECM motor.
