1/4HP 208-230V 1075RPM Dual Voltage Replace 5520ET 5521ET 5522ET 48 Frame Mounting Same D-shaft 24VAC Tap Control ECM Motor

Product Overview (Brief Summary)

When looking for a reliable and energy-efficient drop-in upgrade for residential or commercial air handlers, our 1/4HP ECM Motor provides an exceptional solution. Designed explicitly to replace older legacy units like the 5520ET, 5521ET, and 5522ET series, this 208-230V ECM Motor blends modern electronically commutated technology with standard NEMA 48-frame dimensions. HVAC technicians and equipment contractors appreciate its true plug-and-play capability, which drastically reduces installation time. Supported by Zhongshan Pengfei Electric Appliance Co., Ltd.—a trusted name with over two decades of motor manufacturing expertise—this 1075RPM replacement motor delivers balanced airflow, solid multi-voltage versatility, and dependable long-term performance across varied operational environments.

Detailed Description

The transition from traditional Permanent Split Capacitor (PSC) systems to high-efficiency Electronically Commutated Motor (ECM) technology has changed how modern climate control equipment operates. Our 1/4HP ECM Motor acts as a reliable bridge between legacy infrastructure and contemporary energy standards. Utilizing advanced permanent magnet brushless direct current (BLDC) principles, this unit maintains steady rotational dynamics and optimizes torque delivery even when external static pressures fluctuate within ductwork.

Manufactured inside a spacious 25,000-square-meter facility equipped with advanced tooling, precision CNC machinery, and dedicated testing labs, each 208-230V ECM Motor undergoes stringent quality validation. This setup ensures that every component—from the internal stator windings to the identical D-shaped output shaft—meets rigorous structural and electrical tolerances. Whether you are servicing an existing residential furnace or building a specialized fresh air ventilation unit, integrating a precision-built 24VAC tap control motor helps ensure consistent system reliability, lower energy footprints, and streamlined field maintenance.

Key Features & Practical Benefits

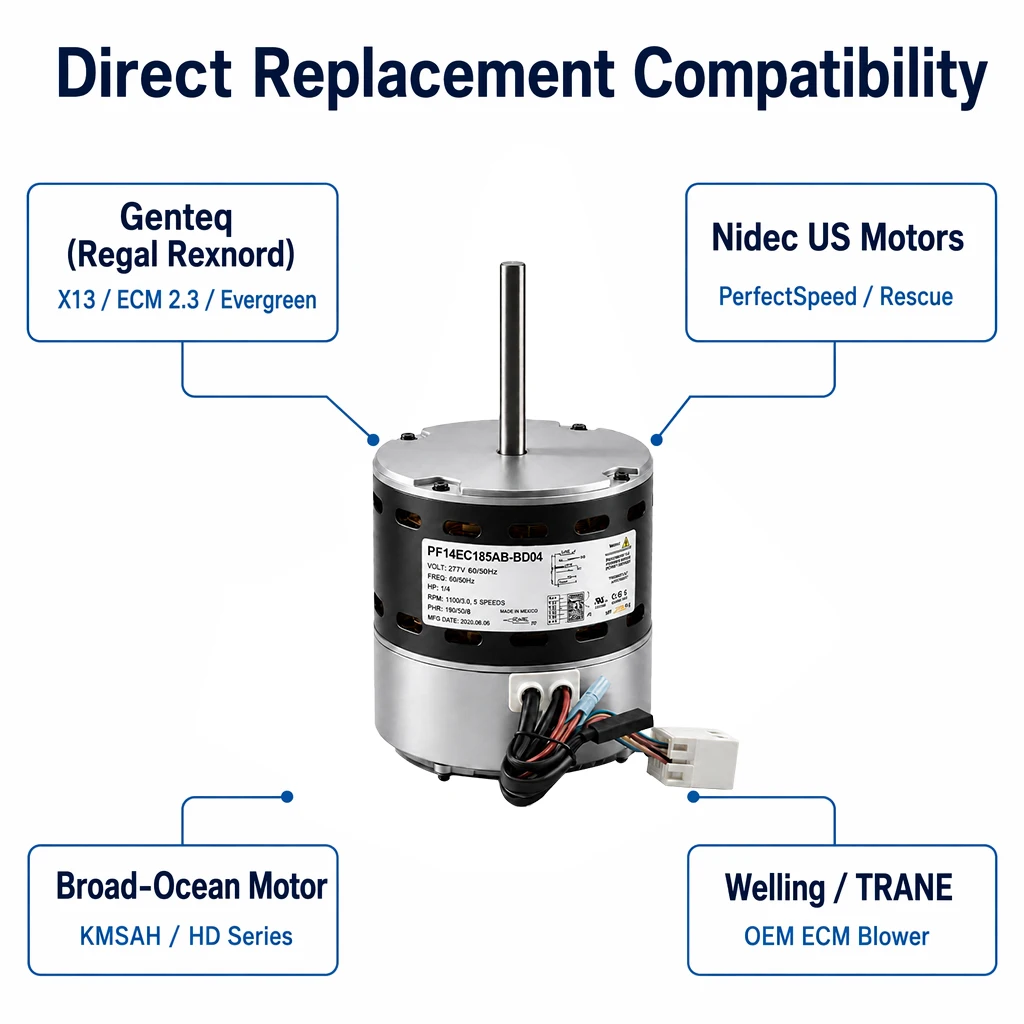

• True Plug-and-Play Retrofit: Engineered around a standard NEMA 48-frame architecture featuring identical mounting hole patterns, matching belly-band grooves, and standard harness plugs. It allows technicians to swap out older Genteq X13, Emerson, or US Motors units without altering existing mounting brackets.
• Flexible 24VAC Tap Control: Out of the box, the motor utilizes five discrete 24VAC speed taps (S1 through S5) configured for Constant Torque behavior, alongside optional support for modern 0-10V analog voltage and PWM digital signal protocols.
• Low-Noise Acoustic Profile: Thoughtful aerodynamic optimization and smooth electronic commutation minimize vibration, making this HVAC blower motor ideal for quiet residential living spaces and light commercial environments.
• Universal Multi-Voltage Adaptability: Designed to handle flexible electrical inputs spanning 110-120V, 208-230V, and 277V frameworks, accommodating diverse regional grid requirements.
• Robust Circuit Protection: Integrates built-in thermal overload monitoring, locked-rotor defense, and surge suppression mechanisms to secure safe functionality against unexpected power surges.

Technical Advantages & Engineering Expertise

Selecting the right air-moving component requires careful attention to thermal management, mechanical fit, and operational stability. Our engineering approach addresses these core factors directly:

1. Advanced Thermal Safeguards: Internal windings are protected by smart thermal sensors and active surge suppression, minimizing the risk of localized overheating during peak cooling or heating cycles.
2. Maintained Airflow Efficiency: Unlike older PSC alternatives that experience sharp efficiency drops against high static pressure, our 1075RPM replacement motor dynamically adjusts its electronic commutation to keep airflow steady.

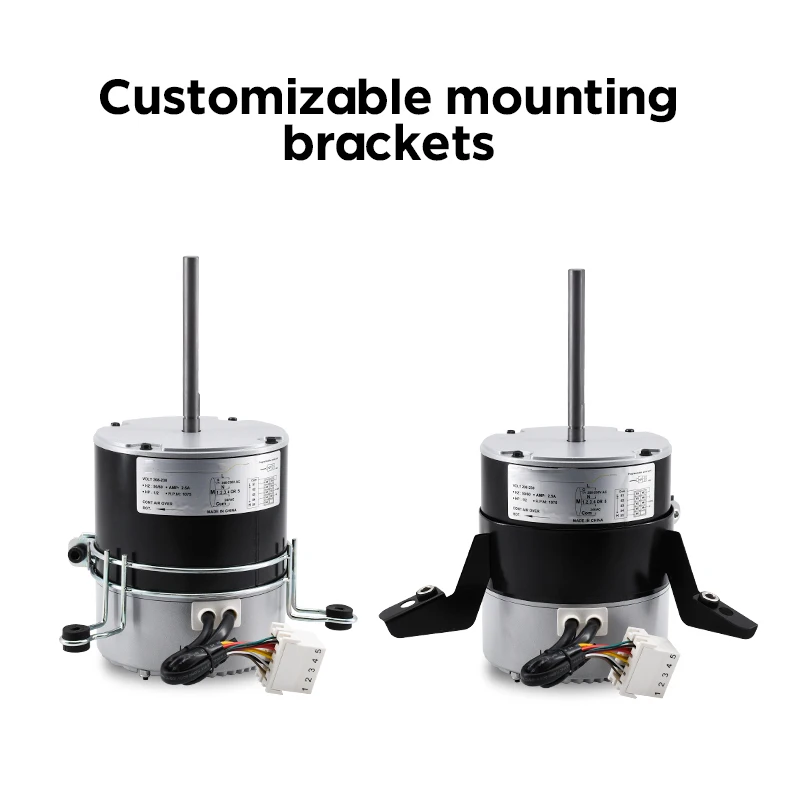

3. Custom OEM and ODM Flexibility: Backed by an in-house research and development center, we accommodate custom shaft lengths, specialized keyways, private label branding, and tailored wiring connectors to match specific OEM equipment requirements.

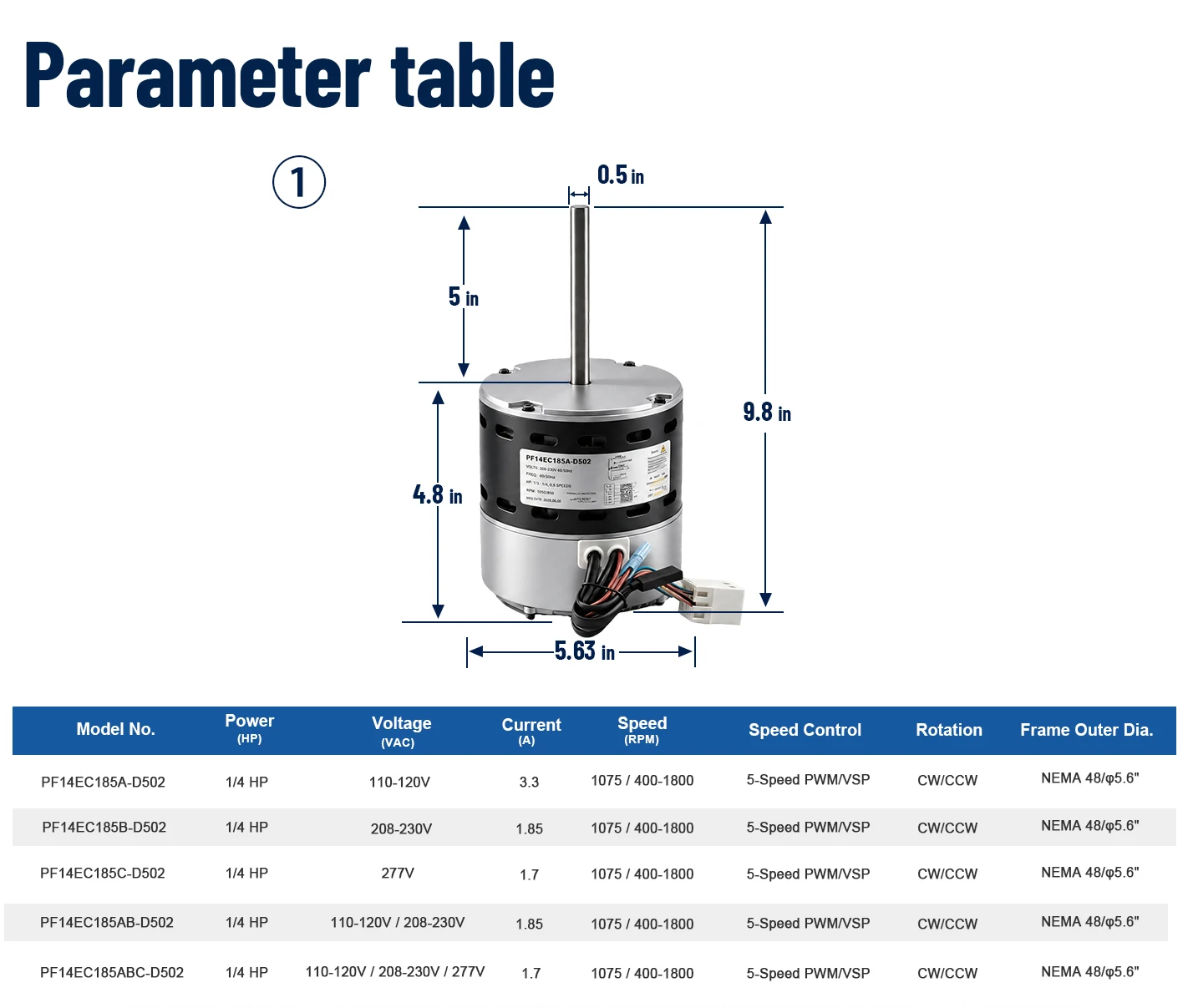

Technical Specifications Table

Application Scenarios

This versatile 24VAC tap control motor is widely deployed across a broad spectrum of thermal management and ventilation setups:

• Residential Furnace Blower Upgrades: Direct drop-in replacement blower motor for standard upflow, downflow, and horizontal air handlers.
• Commercial Ventilation and Fresh Air Units: Supplying reliable air movement for commercial rooftop ventilation boxes and indoor air distribution modules.
• Condenser Fan Assemblies: Serving outdoor split-system air conditioners and heat pump systems requiring reliable weather-resistant performance.
• Custom OEM Air Handlers: Integrated seamlessly into newly manufactured climate control equipment that demands precise torque regulation.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers, and HVAC service contractors, sourcing dependable components is essential for protecting brand reputation and reducing costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. handles every step of production internally—spanning tooling, metal stamping, CNC machining, injection molding, and final motor assembly. This vertical integration secures stable volume supply, tight in-process quality management, and competitive pricing for bulk buyers.

We support pilot testing programs with flexible Minimum Order Quantities (MOQ) and prompt sample fulfillment. By partnering with our engineering team, your business gains access to globally certified motor solutions designed to boost equipment performance and simplify field upgrades. Reach out to our team today to discuss custom wiring layouts, private label options, or volume supply agreements tailored to your production roadmap.
