Home > AC Axial Flow Fan

ALL PRODUCTS

175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers

175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers

EMC Motor
Dynamic Dalancing
Intelligent Control
Protected Mode

Inquiry
  • Overview
  • Recommended Products
Specification

>>> Backward Centrifugal Fan
• Please click on the model you want to see the details and prices


133mm AC/EC
190mm AC/EC/DC
250mm AC/EC/DC
315mm AC
450mm AC/EC

175mm AC/EC
220mm AC/EC/DC
280mm AC/EC/DC
355mm AC/EC/DC
500mm AC/EC
180mm AC
225mm AC/EC/DC
310mm EC/DC
400mm AC/EC/DC
560mm AC
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers factory
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers supplier
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers manufacture
Φ175mm AC External Rotor Motor Powered Backward Curved Centrifugal Fan

Model
Nominal
Voltage
(V)
Frequency
(Hz)
Current
(A)
Input
Power
(W)
Speed
(RPM)
Capacitor
(μF)
Airflow
m³/h/CFM
Noise
(dB)
DYWF.B2C-133-060AB0A
115/120
60
0.52
62
2970
6.0
490/290
68
DYWF.B2C-133-060AB00
220/230
50
0.20
45
2550
2.0
410/245
63
220/230
60
0.27
56
2750
2.0
450/265
65
Material of Impeller
PA6
Material of Rotor
Aluminum casting
Protection Class
IP44
Insulation Class
F
Bearing System
Maintenance-free ball bearing
Operating Temperature
-30℃ to +60℃
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers supplier
Φ175mm EC External Rotor Motor Powered Backward Curved Centrifugal Fan

Model
Nominal
Voltage
(V)
Frequency
(Hz)
Current
(A)
Input
Power
(W)
Speed
(RPM)
Noise
(dB)
Applicable
Temp.
(℃)
DEC72-B133
220/230
50/60
0.9
108
4500
79
-20 ~ +60
Material of Impeller
PA66
Material of Rotor
Aluminum casting
Protection Class
IP44
Insulation Class
B
Bearing System
Maintenance-free ball bearing
Wire Diagram
Contact us for details
NO.
Speed (RPM)
Input Power (W)
1
4507
111.8
2
4194
107.9
3
4128
107.8
4
3786
101.1
5
3616
56.8
6
3612
71.5
7
3613
77.0
8
3617
87.8


175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers factory


Products Description
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers details
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers details
Product Paramenters
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers manufacture
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers supplier
Manufacturing Technique
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers details
Certifications and Patents
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers details
Recommend Products
175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers manufacture 175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers factory 175mm AC EC DC Backward Curve Centrifugal Fan Manufacturers supplier
Backward Centrifugal Fan
Click to Select

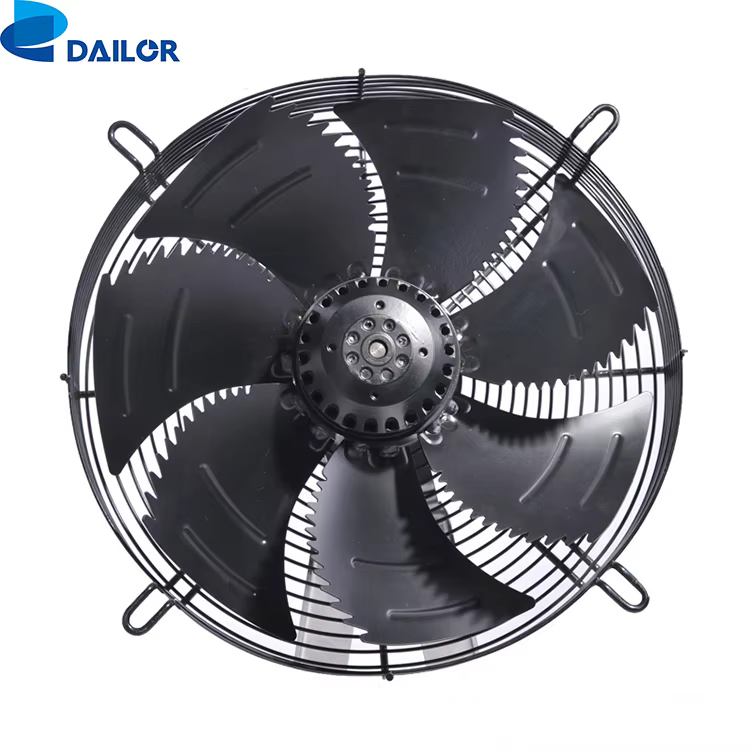

Axial Fan
Click to Select
Forward Centrifugal Fan
Click to Select


FAQ
1.Q: I don't find the specification that meets our requirement.

A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.


2.Q: How about the delivery time?

A: Generally, ready to ship order will be shipped in 15 days after payment.


3.Q:What is your main market?

A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.


4.Q: Can I have samples for testing before ordering products?

A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.
More info about samples and fans, send us message below.


5.Q: What is your QC procedure?

A: We have a strict QC system.
Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling.
After manufacturing, all finished fans will be QC tested.
