1HP 110-120V/208-230V/277V 1075RPM OEM Replacement Constant Torque X-13 5 Speed 24VAC Residential HVAC Furnace Blower ECM Motor

Product Overview (Brief Summary)

Residential HVAC service shops keep a limited parts inventory, and a motor that covers three supply voltages shrinks that list. This 1HP ECM motor is a universal multi-voltage replacement for the X-13 family: it runs at 1075RPM on 110-120V, 208-230V or 277V input, mounts in a standard NEMA 48 frame, and matches the 5-speed 24VAC tap control convention used across residential furnace blower motor platforms. The constant torque controller keeps airflow steady as duct pressure shifts, and the plug-in harness keeps changeover work short. Built by Zhongshan Pengfei Electric Appliance Co., Ltd., this OEM ECM motor serves as a dependable furnace blower motor and air handler blower motor for homes and small commercial sites.

Detailed Description

Most residential blower motors are matched to one supply voltage, so a shop often carries several numbers to cover the homes it services. A universal multi-voltage ECM motor consolidates that stock: the same 1HP unit handles 110-120V household circuits, 208-230V apartment and light commercial systems, and 277V commercial lighting circuits where the equipment is wired that way.

Inside, the motor uses a permanent magnet BLDC rotor and an electronic controller that trims commutation to hold torque as filters load and dampers move. Because the controller responds continuously, airflow holds steadier than a PSC blower running at one speed, which helps this HVAC ECM motor keep comfort steady through the cooling and heating cycles. The 5-speed 24VAC tap control interface follows the X-13 convention, so existing thermostat and control wiring connects without a new controller. The variable speed motor design also ramps airflow more gradually than a PSC blower on start-up.

Service life depends on consistent manufacturing, and each motor is built in a 25,000-square-meter plant with CNC machining and testing labs, then passed through electrical and dimensional checks before shipment.

Key Features & Practical Benefits

• One Part Number, Three Voltages: This multi-speed ECM motor accepts 110-120V, 208-230V and 277V input, so one SKU covers residential and commercial supply conditions.
• X-13 Style 5-Speed Control: The 5-speed 24VAC tap interface follows the X-13 family, keeping changeout familiar for service techs.
• Constant Torque Airflow: The constant torque ECM motor controller adjusts torque as static pressure changes, helping this HVAC blower motor hold steadier airflow in ducts of varying resistance.
• 1HP Power for Standard Homes: 1HP output on a NEMA 48 frame supports furnace blower motor and air handler blower motor duty in typical residential equipment, including larger wheels.
• Quiet, Protected Operation: Smooth commutation, thermal sensing and surge suppression support quiet running and safer operation in occupied homes.

Technical Advantages & Engineering Expertise

Choosing a universal ECM motor for residential stock involves three checks: voltage coverage, control compatibility and frame fit.

1. Voltage Coverage: One 1HP ECM motor covers 110-120V, 208-230V and 277V, reducing the numbers a service shop or distributor must stock.
2. Control Compatibility: The 5-speed 24VAC tap control layout matches X-13 wiring, with optional 0-10V and PWM control for newer systems.
3. Frame Fit: The NEMA 48 frame (5.6-inch diameter), hole pattern and belly-band grooves follow standard conventions; custom shafts, connectors and private labeling support OEM programs.

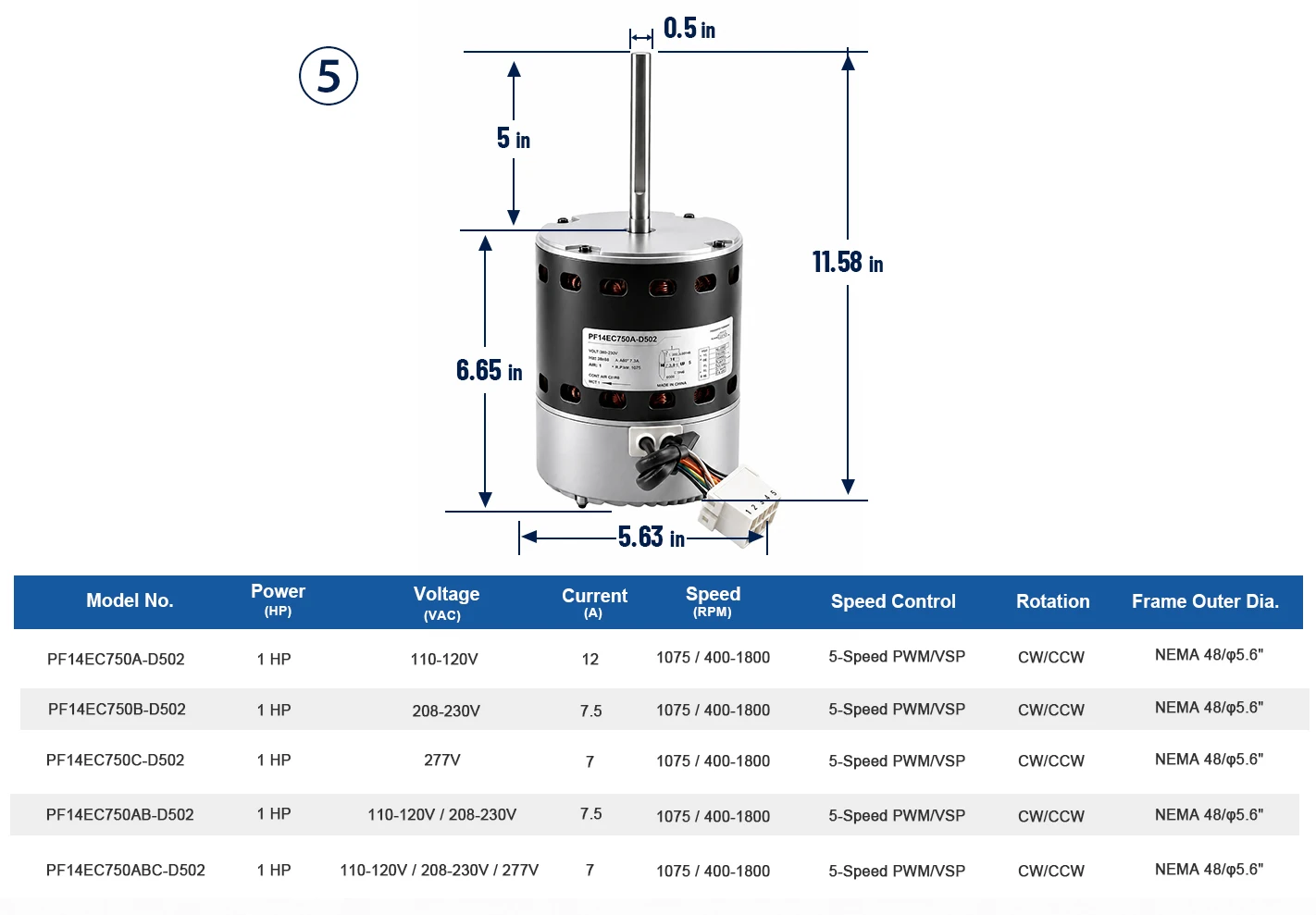

Technical Specifications Table

Application Scenarios

This 1HP universal multi-voltage ECM motor fits common air-moving roles:

• Residential Furnace Blowers: Replaces furnace blower motors in gas and electric furnaces across 110-120V and 208-230V homes.
• Fan Coil and Air Handler Units: Serves air handler blower motor duty in indoor units, fan coils and heat pump air handlers.
• Light Commercial Equipment: Covers 277V blower and condenser fan motor applications in small commercial buildings.
• OEM Furnace Programs: Integrates into new residential furnace platforms with custom shafts and control profiles.

Commercial Value & Partnership Benefits

For wholesalers and equipment makers, a universal multi-voltage ECM motor eases inventory and keeps service parts flexible. Zhongshan Pengfei Electric Appliance Co., Ltd. has served the HVAC industry for more than 20 years, holds more than 100 patents and is recognized as a National High-Tech Enterprise. Its 25,000-square-meter plant covers tooling, metal stamping, injection molding, CNC machining and final motor assembly, which supports steady volume supply, in-process quality checks and competitive pricing. Products are exported to more than 20 countries and regions, and ISO 9001, UL, CCC, CE and RoHS documentation should be verified against the specific model.

Flexible MOQ and fast sample delivery let distributors test this 1HP ECM motor on real furnace decks before volume orders. Engineering support covers custom wiring, connector layouts, private labeling and supply agreements, helping partners align this universal ECM motor with regional voltage requirements and residential HVAC programs.
