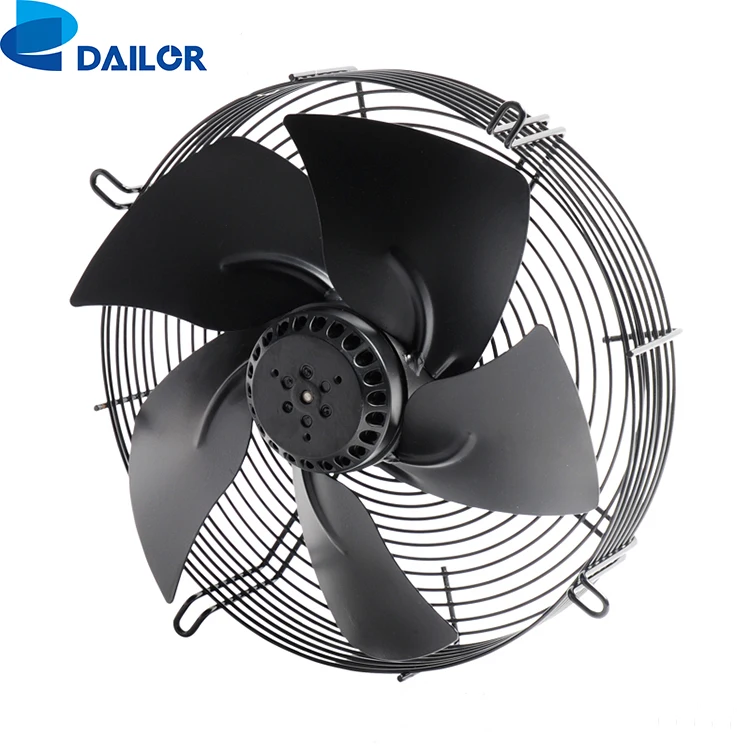

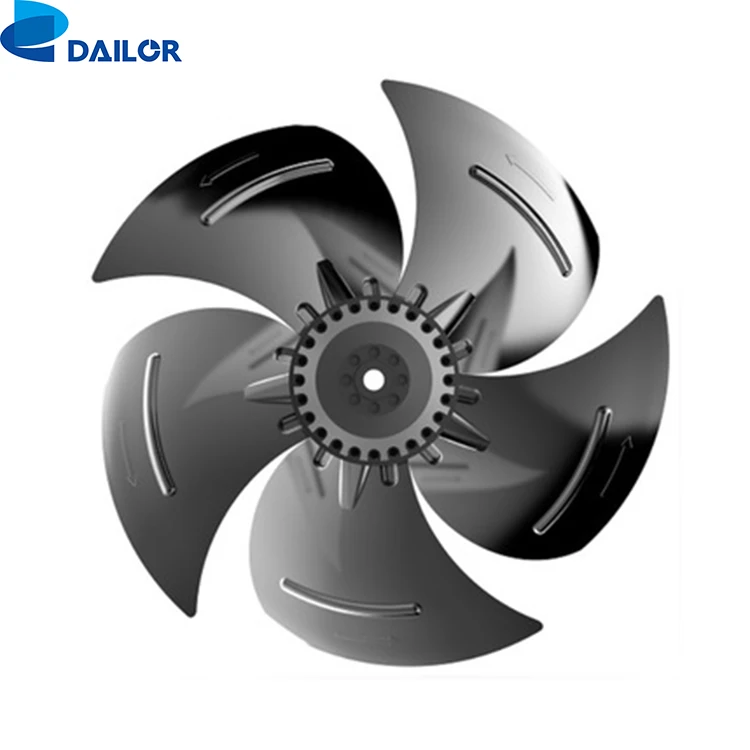

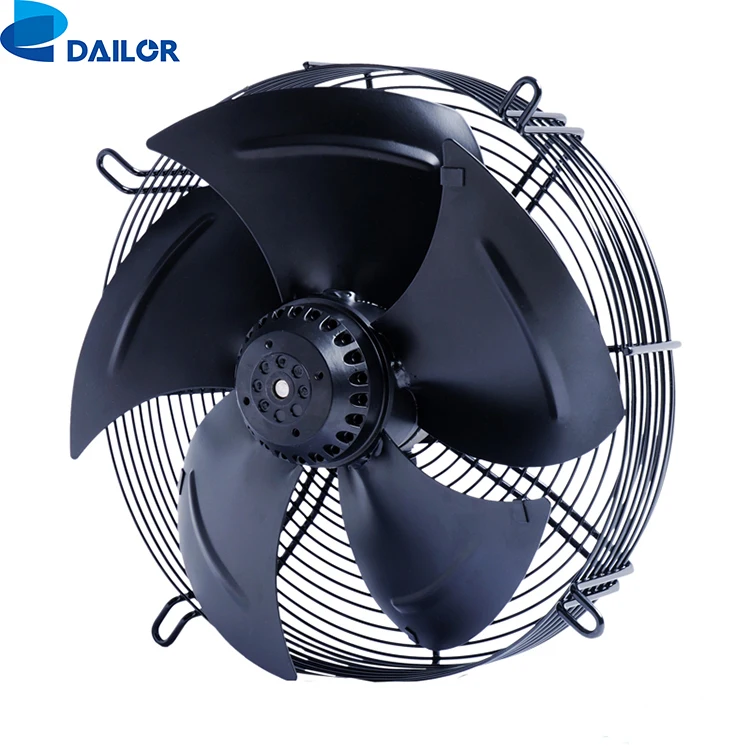

350mm 110V 220V AC EC axial flow ventilation fan
350mm 110V 220V AC EC axial flow ventilation fan
350mm 110V 220V AC EC axial flow ventilation fan
350mm 110V 220V AC EC axial flow ventilation fan
350mm 110V 220V AC EC axial flow ventilation fan
350mm 110V 220V AC EC axial flow ventilation fan
350mm 110V 220V AC EC axial flow ventilation fan
350mm 110V 220V AC EC axial flow ventilation fan

350mm 110V 220V AC EC axial flow ventilation fan

-Backward Centrifugal Fan Sizes: 133mm ~ 560mm
-Power: Up to 2300W
-Speed: Up to 3300RPM
-Airflow: Up to 32500m3/h
-Speed Control: Speed controller (AC) or PWM/0-10V Input (DC&EC)

Inquiry
  • Overview
  • Recommended Products

AC/EC/DC External Rotor Motor Powered Axial Fan


1.The external rotor motor powered axial fan has the characteristics of the characteristics of compact structure, reliable operation, low noise, easy installation and high efficiency, etc.

2.There are single-phase and three-phase power input types for the external rotor motor powered axial fan. And the axial fans are widely used in the industries of industries of evaporator, condenser, water cooler, heat pump, IT&Telecom and ventilation, ect.

3.The external rotor motor has a low start current, and is IP54 protection level, insulation class F evaluated.

4.There’s a built-in thermal protector for the single-phase motor, and the motor can be operated in the temperature from -30 to 60 degrees Celsius. If the customer needs built-in thermal protector for the three-phase motor, please note us while placing the order.

5.The normal input voltages/frequency for our single-phase motor are 115V, 230V, 50/60Hz, and for three-phase motor are 380V, 460V, 50/60Hz. We can accommodate the voltage and frequency to customer’s requirements.

6.Average life of our motors The bearing used on our motor is maintenance free ball bearing, and the average life rating is L10 which is between 30,000 to 50,000 hours based on different operating conditions.

7.The external rotor motor powered fans are CCC, CE, RoHs, UL and cUL approval.
General Parameter
Backward Centrifugal Fan Sizes
133mm ~ 560mm
Forward Centrifugal Fan Sizes
120mm ~ 250mm
Axial Fan Sizes
200mm ~ 900mm
Voltage
AC Input: 210V, 220V, 230V, 380V, 400V
DC Input: 12V, 24V, 48V
EC Input: 210V, 220V, 230V, 380V, 400V (or customized)
Power
Up to 2300W
Speed
Up to 3300RPM
Airflow
Up to 32500m3/h
Speed Control
Speed controller (AC) or PWM/0-10V Input (DC&EC)
Approvals
CCC, CE, RoHs, UL, CUL


350mm 110V 220V AC EC axial flow ventilation fan manufacture
Specification
>>>Airfoil Profiled AC Axial Fan
250/300/350/400/450/500/560/630/710/800mm
>>>Airfoil Profiled EC/DC Axial Fan
250/300/350/400/450/500mm

>>>AC Axial Fan
200/250/300/315/330/350/380/400/420/450/500/550/600/630/710/800/900mm
>>>EC Axial Fan
200/250/300/350/400/450/500/630/710/800mm
>>>DC Axial Fan
200/250/300/450mm
Please contact us for more product details!
Products Description
350mm 110V 220V AC EC axial flow ventilation fan details
350mm 110V 220V AC EC axial flow ventilation fan factory
Φ350 AC Axial Fan

Model
Nominal
Voltage
(V)
Frequency
(Hz)
Current
(A)
Input
Power
(W)
Speed
(RPM)
Capacitor
(μF)
Airflow
m³/h/CFM
Noise
(dB)
DYWF.A4S-350S-5DIA00
220/230
50
0.60
135
1380
4
2750/1617
58
220/230
60
0.83
190
1550
29501.0
3100/1823
60
DYWF.A4T-350S-5DIA00
380/400
50
0.30
135
1360
/
2750/1617
58
60
0.34
170
1500
3050/1794
60
DYWF.A4S-350S-5DIA05
115/120
50
1.20
135
1350
12
2760/1570
58
60
1.60
175
1500
2900/1705
60
Material of Rotor
Aluminum casting
Protection Class
IP44
Insulation Class
F
Approval
CCC, CE, RoHs, UL
Bearing System
Maintenance-free ball bearing
Operating Temperature
-30℃ to +60℃
350mm 110V 220V AC EC axial flow ventilation fan details

Optional Grill

A- w/o grill
B- flat grill
C- flat grill w/sidepiece
D- concave guard grill with sidepiece
E- round mounting duct
F0- type F0 mounting plate
F1- type F1 mounting plate
G- flat concave guard grill
H- aluminum mounting frame
Φ250 EC/DC Axial Fan

Model
Nominal
Voltage
(V)
Frequency
(Hz)
Current
(A)
Input
Power
(W)
Speed
(RPM)
Noise
(dB)
Applicable
Temp.
(℃)
DEC92-A350
220/230
50/60
1.25
180
1750
62
-20 ~ +60
Material of Rotor
Aluminum casting
Protection Class
IP44
Protection Class
B
Bearing System
Maintenance-free ball bearing
Wire Diagram
Contact us for details
DEC92-A350
NO.
Speed (RPM)
Input Power (W)
1
1741
172.2
2
1645
185.0
3
1409
166.1
4
1164
146.3
5
1043
35.4
6
1040
57.5
7
1043
87.7
8
1043
101.3
Mechanical Parameter (only for EC/DC, not suitable for AC motor fan):
Direction of Air flow
Intake/Exhaust
Insulation Class
B/F
Bearing
Maintenance-free ball bearing
Protection
Line undervoltage
Motor current limitatin
Locked-rotor protection
Soft start
Thermal protector
Operation mode
(S1)
Protection Type
IP44/IP54
Operating Temperature
-25℃  to +60℃
Technical features:
Control input 0~10VDC/PWM
Output 10VDC+10%. max.10mA
Tach output
Alarm relay


350mm 110V 220V AC EC axial flow ventilation fan details
Main Application
>> AC/EC/DC Axial Fan

Applicable to large air volume, low static pressure, system resistance of smaller occasions


•  Air Conditioning Terminal
          •  Condenser
          •  Evaporator
          •  Condenser
          •  Evaporator
          •  Air Conditioning Fan
          •  Exhaust Ventilation
          •  Cold Storage
          •  Equipment heat radiation
          •  HVAC industry
          •  Air Handly Unit
          •  Other related Industries
Company Profile
350mm 110V 220V AC EC axial flow ventilation fan details

Zhongshan Pengfei Electric Appliance Co., Ltd
was founded in 2004, is located in Dongsheng Town, Zhongshan City, where it is an industrial town, specializing in micro motor accessories, motor research, development, and production.Our company has more than 50 independent intellectual property patents. We have passed ISO9001quality system certification and environmental protection certification. According to the customer requirements of different markets, it has produced products that confirmed with the certification standards of CE, CQC, ROHS and so on. We have more than 20000 square meters of production workshop. Fix equipment includes high-speed punches, automatic die casting machines, injection molding machines, robots, mold development equipment, motor testing equipment and so on. All kinds of molds are more than 2000 sets. And we have more than 10000 kinds of motor accessories products, the main products are motor stator and rotor chips, motor zinc, and aluminum brackets(end covers), motor insulation coil skeletons and other motor hardware and plastic products. We have been named as a "micro motor accessories supermarket" in the industry.


350mm 110V 220V AC EC axial flow ventilation fan supplier

With many advanced production equipments, we guarantee the quality and delivery time in the development and production of motor, design the most optimized products according to the cost and quality requirements provided by customers.


350mm 110V 220V AC EC axial flow ventilation fan factory

we are pound to accumulate wide and international customers with stable product quality and excellent technological advantages. If you are looking for a reliable supplier in custom electric motors, we believe we are your correct choice and trustworthy partner in China.

350mm 110V 220V AC EC axial flow ventilation fan factory
350mm 110V 220V AC EC axial flow ventilation fan supplier
350mm 110V 220V AC EC axial flow ventilation fan manufacture
Certifications and Patents
350mm 110V 220V AC EC axial flow ventilation fan manufacture
Our Advantages
350mm 110V 220V AC EC axial flow ventilation fan manufacture
350mm 110V 220V AC EC axial flow ventilation fan manufacture
FAQ

1.Q: I don't find the specification that meets our requirement.
A: Don't worry. We have hundreds of fans. Send us messages, we will recommend the right one to you.

2.Q: How about the delivery time?
A: Generally, ready to ship order will be shipped in 15 days after payment.

3.Q:What is your main market?
A: We have UL, CE certificate, North America, Europe are our main market we also have client in Southeast Asia, South America, Africa and so on.

4.Q: Can I have samples for testing before ordering products?
A:Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted. More info about samples and fans, send us message below.

5.Q: What is your QC procedure?
A: We have a strict QC system. Before manufacturing, all raw material will be QC sampled.
During manufacturing, when each part is finished, it will be QC sampled. We will assemble samples before mass assembling. After manufacturing, all finished fans will be QC tested.
