Industrial 280mm AC Air conditioning Terminal fan FFU fan centrifugal fan

Industrial 280mm AC Air conditioning Terminal fan FFU fan centrifugal fan

-Backward Centrifugal Fan Sizes: 133mm ~ 560mm
-Forward Centrifugal Fan Sizes: 120mm ~ 250mm
-Single Inlet Blower Fan Sizes: 120mm ~ 200mm
-Double Inlet Blower Fan Sizes: 120mm ~ 146mm
-Axial Fan Sizes: 200mm ~ 710mm

Overview
Recommended Products

All kinds of Fans

Backward Centrifugal Fan Sizes	133mm ~ 560mm
Forward Centrifugal Fan Sizes	120mm ~ 250mm
Single Inlet Blower Fan Sizes	120mm ~ 200mm
Double Inlet Blower Fan Sizes	120mm ~ 146mm
Axial Fan Sizes	200mm ~ 710mm
Inline Duct Fan Sizes	100mm ~ 315mm
Voltage	AC Input: 115V, 120V, 220V, 230V, 380V, 400V
	DC Input: 12V, 24V, 48V
	EC Input: 220V, 230V, 380V, 400V
Power	Up to 2300W
Speed	Up to 4528RPM
Airflow	Up to 24000m3/h
Speed Control	Speed controller (AC) or 0-10V/PWM Input (DC&EC)
Approvals	CCC, CE, RoHs, UL, CUL

EC102-B280-3

This series of AC external rotor motor powered backward curved centrifugal fan covers the diameter range from B133 to B560, with the maximum volume flow up to 8500m^3/h and the maximum static pressure up to 650Pa. This series of external rotor fans are characterized by compact structure, reliable operation, energy saving and high efficiency, low operating noise and easy installation. After years of independent research and development, the current plastic impeller centrifugal fans from B133 to B250 have formed a high efficiency and low noise characteristic products.

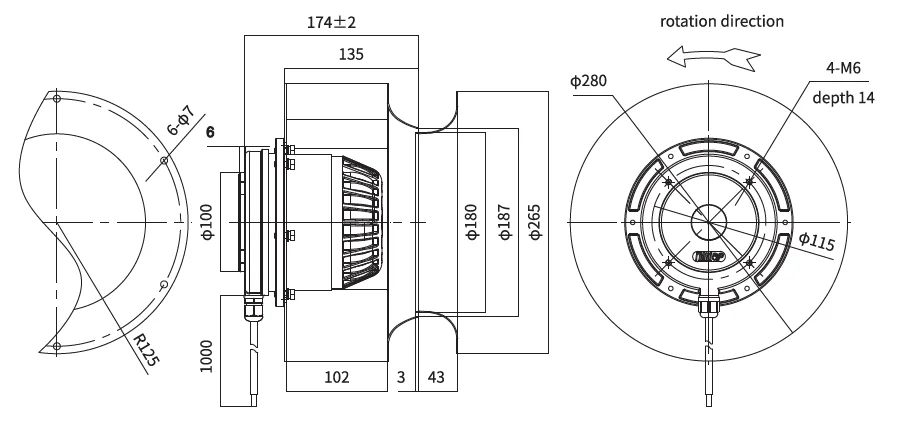

Size&Curve of φ280mm

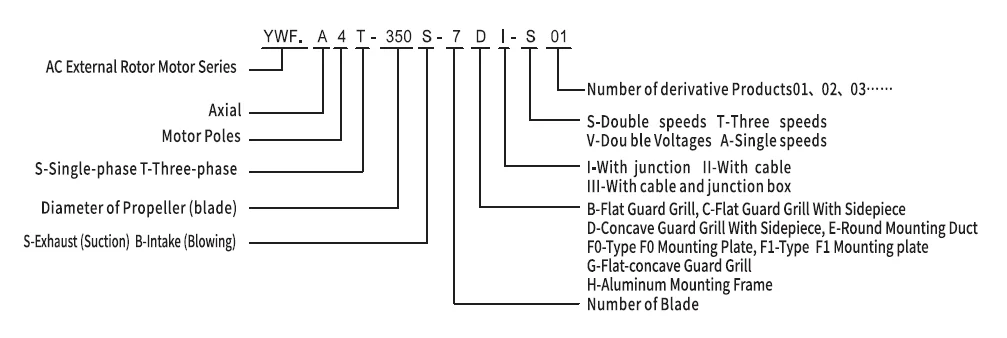

AC Model Numbering (for example)

Industrial 280mm AC Air conditioning Terminal fan FFU fan centrifugal fan factory

Specification

	Volatge	Frequency	Current	Input Power	Speed	Capacitor	Air Flow	Noise	Curve No.	Operating Temperature
Model No.	V	Hz	A	W	RPM	μF	m³/h/CFM	dB(A)	#	Min/Max(℃)
YWF.B2T-280-135AB10	380/400	50	1.30	500	2750	/	2600/1529	78	(2)	-30/+60
YWF.B2T-280-135AB10	400	60	1.60	680	2900	/	2700/1529	80	(1)	-30/+60
