1/2HP 110-120V 1075RPM Direct Replacement 1/2 HP Constant Torque ECM X-13 5SME39HXL015 5SME39HXL015A 5SME39HXL053 ECM Motor

Product Overview (Brief Summary)

A furnace blower that moves more air needs more motor. This 1/2HP 110-120V constant torque ECM motor replaces the X13, 5SME39HXL015, 5SME39HXL015A and 5SME39HXL053 series with a standard NEMA 48 frame and unchanged mounting, so the higher power rating fits the same brackets and harness points. It turns at 1075RPM and runs in constant torque mode with 24VAC tap control, which helps this constant torque motor deliver steadier airflow through cooling and heating cycles. Multi-voltage input covers 110-120V, 208-230V and 277V. From Zhongshan Pengfei Electric Appliance Co., Ltd., this 1/2HP ECM motor is designed for quiet running and reliable long-term service in residential HVAC.

Detailed Description

A 1/2HP ECM motor gives HVAC service teams more airflow headroom than a smaller replacement blower motor, and this constant torque ECM design upgrades older PSC blowers with electronic control instead of fixed-speed operation. Constant torque output comes from a brushless direct current rotor driven by electronic commutation, giving this HVAC blower motor steadier airflow at each speed tap; the DC brushless motor design keeps the unit quiet as it runs. As duct resistance changes, the controller holds the selected torque, so the 1/2HP rating is available exactly when the blower wheel needs it.

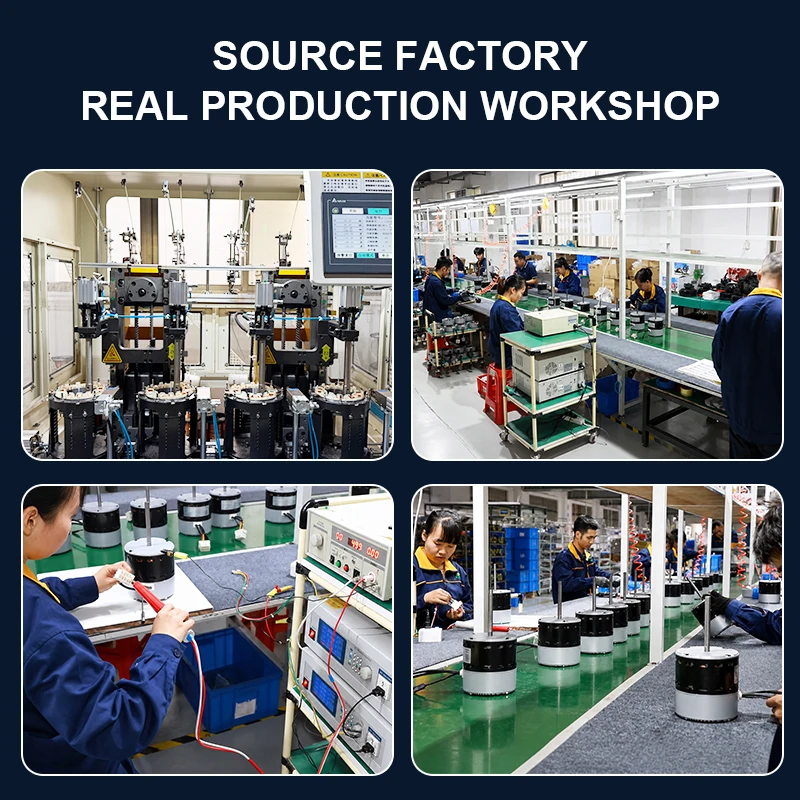

Production takes place in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs, and each ECM motor is checked against structural and electrical tolerances before shipment. Five discrete 24VAC speed taps let the installer match airflow to the furnace or air handler, while the D-shaft fits standard blower wheels on this NEMA 48 frame motor. Multi-voltage input covers 110-120V, 208-230V and 277V grids, so the same ECM motor family can serve homes and light commercial sites.

Key Features & Practical Benefits

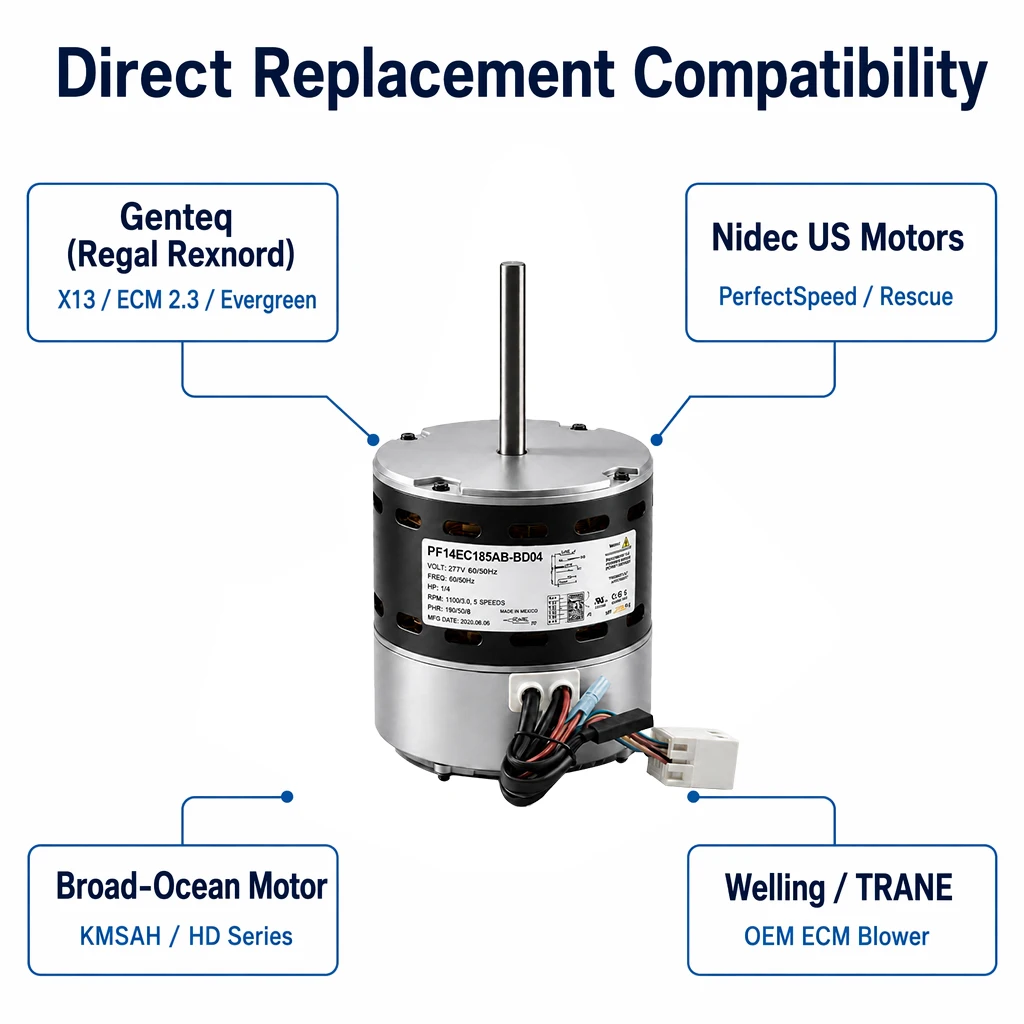

• True Plug-and-Play Direct Replacement: Engineered around a standard NEMA 48 frame with identical mounting hole patterns, belly-band grooves and standard harness connectors, this replacement blower motor lets technicians swap out older Genteq X13, 5SME39HXL015, 5SME39HXL015A, 5SME39HXL053, Emerson or US Motors units without altering existing brackets, so it works as a direct replacement motor for these series.
• Constant Torque Multi-Speed Control: Five discrete 24VAC speed taps (S1 to S5) operate in constant torque mode. Constant torque control means this ECM motor holds the selected torque through changing loads, so this constant torque motor keeps furnace blower airflow steadier than fixed-speed designs. Optional 0-10V and PWM control is available.
• 1/2HP Airflow Headroom: The 1/2HP rating supports larger blower wheels and longer duct runs without the sag of smaller units.
• Universal Multi-Voltage Input: Accepts 110-120V, 208-230V and 277V, covering common residential and light commercial grids.
• Built-In Protection: Thermal overload sensing, locked-rotor protection and surge suppression are built into this ECM motor's control circuitry.

Technical Advantages & Engineering Expertise

The design priorities for this ECM motor are simple: keep the equipment running, keep airflow consistent and keep the installation straightforward.

1. Thermal Management: Built-in thermal protection and surge suppression guard this ECM motor during extended cooling and heating cycles.
2. Higher Airflow Headroom: The 1/2HP ECM motor output supports larger blower wheels and longer duct runs, so this furnace blower motor holds steadier airflow than smaller units can maintain.
3. OEM/ODM Capability: Custom shaft dimensions, keyways, private labeling and wiring connectors are supported on this ECM motor for OEM blower programs.

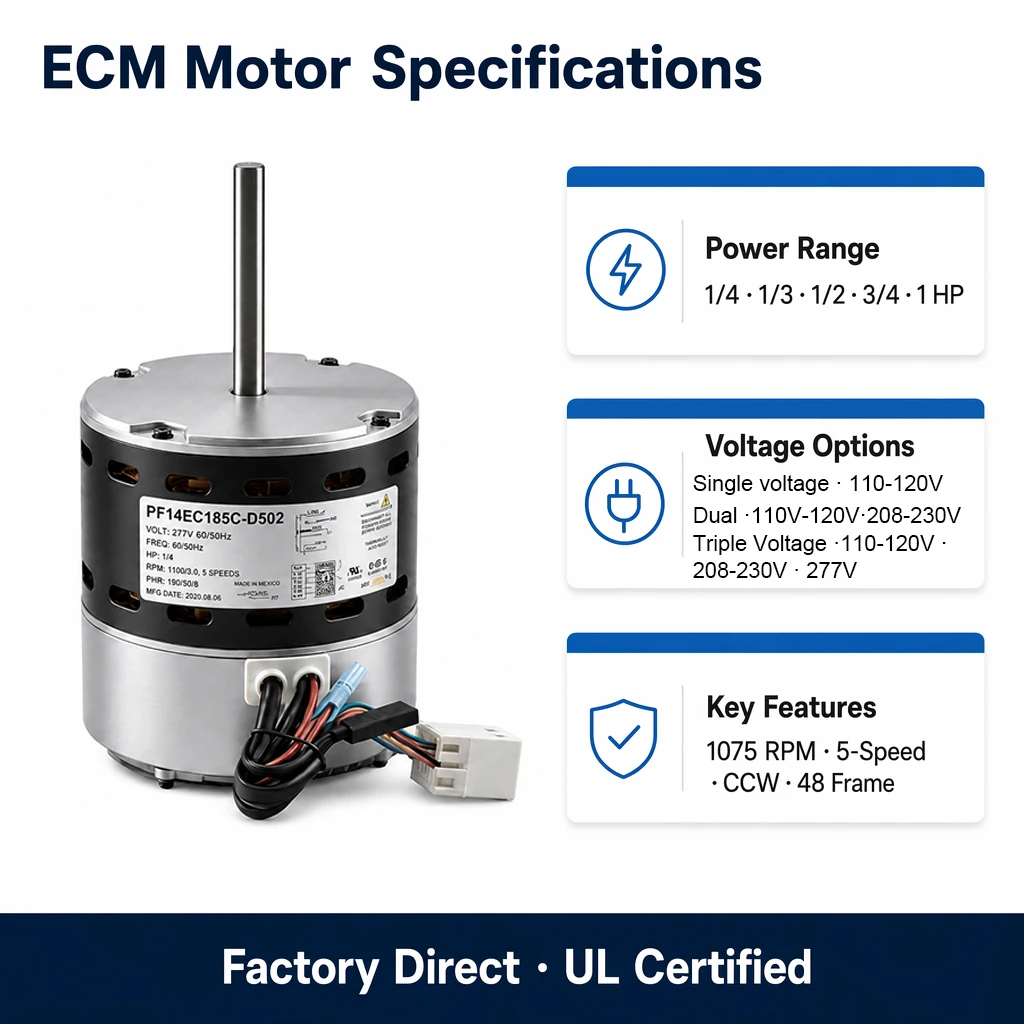

Technical Specifications Table

Application Scenarios

This 24VAC tap control motor fits the HVAC roles where a stronger blower motor is part of the fix, serving as a multi-voltage replacement blower motor:

• Larger Residential Furnace Blowers: Direct drop-in replacement blower motor for furnaces whose blower wheel and duct layout call for 1/2HP output, and this ECM motor is a direct replacement motor for the X13 series.
• Air Handler Blowers: Serves residential and light commercial air handlers where a dependable HVAC blower motor keeps conditioned air moving.
• Condenser Fan Assemblies: Fits outdoor air conditioner and heat pump condenser fan duty as a dependable condenser fan motor.
• Custom OEM Air Handlers: Integrates into new climate equipment requiring precise torque regulation.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. The company manages tooling, metal stamping, injection molding and final motor assembly in-house, supported by a 25,000-square-meter facility, an independent R&D center and dedicated testing labs, and its products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation that should be confirmed against the specific model.

Pilot testing programs with flexible MOQ and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume, and engineering support covers custom wiring, private labeling and volume supply agreements.
