1/3HP 110-120V/208-230V/277V 1075RPM ECM X-13 HVAC Constant Torque Residential Air Conditioner Central Heating ECM Motor

Product Overview (Brief Summary)

Residential service trucks need a furnace blower motor that fits without surprises. This 1/3HP 110-120V ECM motor replaces the Genteq X13, 5SME39DXL210, 6103E, 5522ET, 5532ET and 5542ET series on a standard NEMA 48 frame, keeping the same mounting hole patterns, belly-band grooves and harness connectors so the swap is a drop-in. It turns at 1075RPM and runs in constant torque mode with 24VAC tap control, which helps this furnace blower motor deliver steadier airflow through heating cycles. From Zhongshan Pengfei Electric Appliance Co., Ltd., this furnace blower motor is manufactured with quiet operation and consistent reliability as design goals, so it fits the multi-voltage service most residential furnace blower motor crews encounter.

Detailed Description

When a furnace blower motor is driven by an older PSC design, airflow can sag as filters load or duct runs change. An ECM motor such as this 1/3HP unit responds to load by holding torque, which is why ECM technology has become the standard in residential HVAC; the same constant torque motor logic drives this furnace blower motor design. Permanent magnet brushless DC construction keeps the rotor turning without brush contact, supporting quieter and more consistent operation on this ECM motor. Because it is a 110-120V furnace blower motor, it matches the wiring most North American homes use, and the 1075RPM rating fits standard blower wheels found in residential furnaces and air handlers, so this ECM motor can serve as a variable speed motor with five selectable taps.

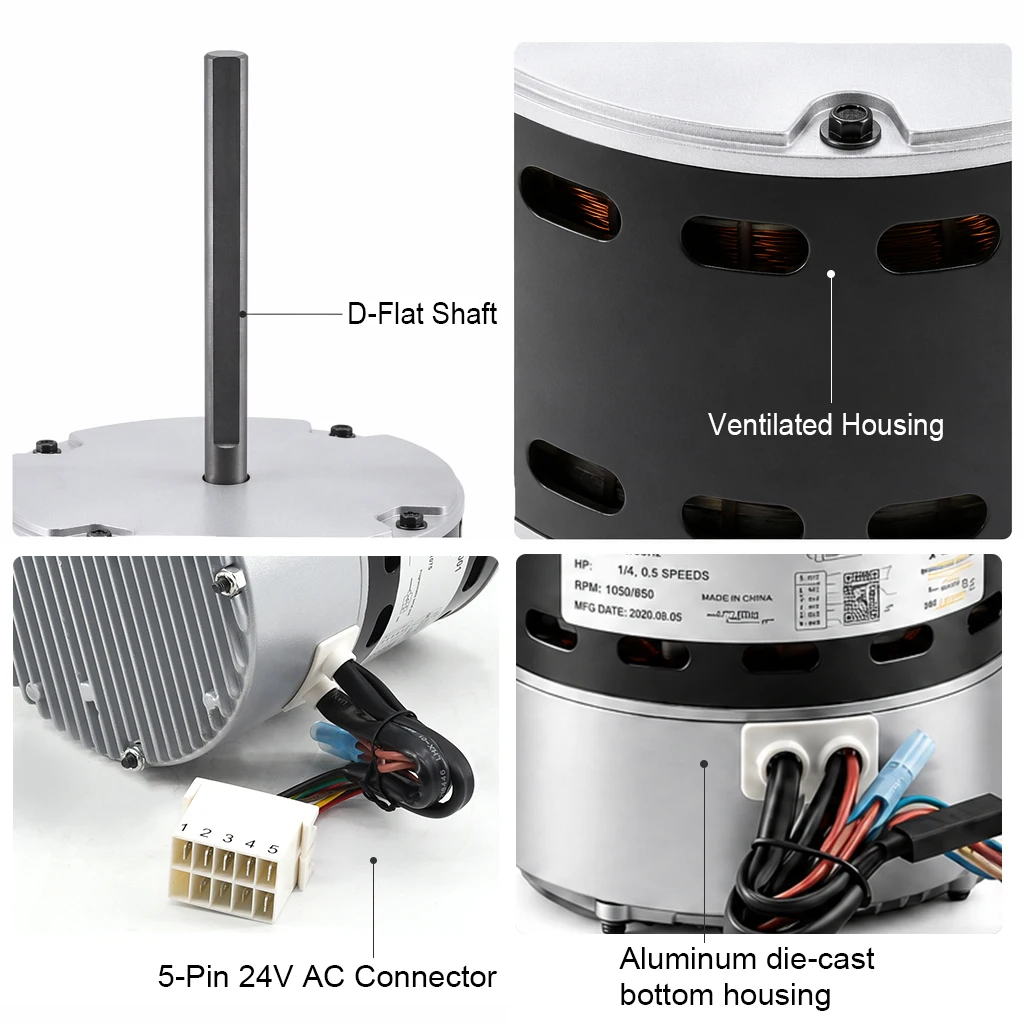

Each unit is produced in a 25,000-square-meter facility with dedicated testing labs, and components from the stator windings to the D-shaft are checked on each ECM motor against tolerances before shipment. Five discrete 24VAC speed taps let the installer match airflow to the furnace or air handler, and this ECM motor's multi-voltage input covers 110-120V, 208-230V and 277V grids. For a service technician, the combination of drop-in fit, five-speed control and constant torque motor behavior reduces the guesswork that older blower motors leave in the field, so this ECM motor is a straightforward furnace blower motor upgrade.

Key Features & Practical Benefits

• Direct Drop-In Replacement: NEMA 48 frame, matching mounting patterns, belly-band grooves and harness plugs cover the Genteq X13, 5SME39DXL210, 6103E, 5522ET, 5532ET, 5542ET, Emerson and US Motors series, so this ECM motor installs as a replacement blower motor.
• Constant Torque Speed Taps: Five 24VAC taps (S1 to S5) run in constant torque mode. The constant torque motor control loop compensates for duct resistance, keeping delivered airflow steadier than a single-speed PSC motor can. Optional 0-10V and PWM control is available.
• Multi-Voltage Input: Accepts 110-120V, 208-230V and 277V, covering the grids this furnace blower motor is likely to meet.
• Low-Noise Profile: Brushless electronic commutation keeps vibration and running noise low in living spaces.
• Protection Circuits: The ECM motor integrates locked-rotor protection, thermal overload monitoring and surge suppression for safer operation.

Technical Advantages & Engineering Expertise

The engineering behind this ECM motor focuses on the three things field service cares about: thermal protection, consistent airflow and application flexibility.

1. Thermal Protection: Protection includes winding temperature sensing and surge suppression, useful when a furnace blower motor runs long cycles in cold weather.
2. Steadier Air Delivery: The ECM motor adjusts electronically to duct resistance, reducing the airflow sag common with single-speed motors.
3. OEM/ODM Support: The in-house R&D center accommodates custom shafts, keyways, branding and connector layouts.

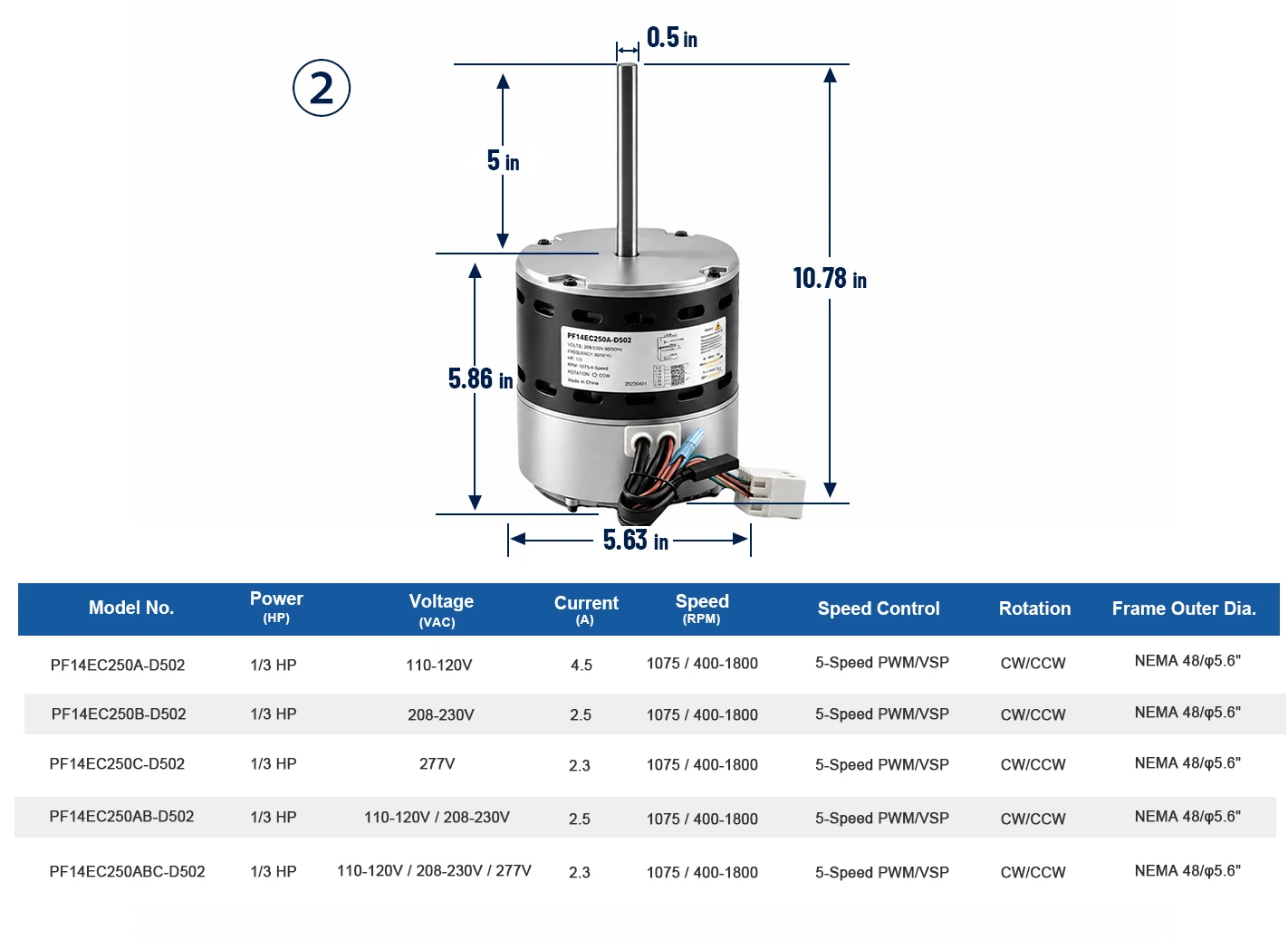

Technical Specifications Table

Application Scenarios

This 24VAC tap control motor is used in the air-moving roles a residential HVAC company meets every week, delivering steady airflow as a constant torque motor:

• Residential Furnace Blowers: Direct replacement for furnace blower motor duty in upflow, downflow and horizontal configurations.
• Air Conditioner and Air Handler Blowers: Serves indoor AC units and air handlers where a dependable HVAC blower motor moves cooled air.
• Condenser Fans: Fits outdoor condenser fan assemblies on split systems and heat pumps as a dependable condenser fan motor.
• Custom OEM Air Handlers: Integrates into new climate equipment requiring precise torque regulation from this ECM motor.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. The company manages tooling, metal stamping, injection molding and final motor assembly in-house, supported by a 25,000-square-meter facility, an independent R&D center and dedicated testing labs, and its products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation that should be confirmed against the specific model.

Pilot testing programs with flexible MOQ and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume, and engineering support covers custom wiring, private labeling and volume supply agreements.
