1/2HP 208-230V 1075RPM Direct Replacement ECM X-13 5SME39HXL350 5SME39HXL090 5SME39HXL110 5SME39HXL145 Furnace Blower ECM Motor

Product Overview (Brief Summary)

For contractors working on 208-230V heating and cooling systems, this 1/2HP 208-230V ECM motor is a practical upgrade path. It replaces the Genteq X13, 5SME39HXL350, 5SME39HXL090, 5SME39HXL110 and 5SME39HXL145 series on a standard NEMA 48 frame with unchanged mounting, so one furnace blower motor covers several part numbers in the field. The motor turns at 1075RPM and runs in constant torque mode with 24VAC tap control, keeping airflow steady through heating and cooling cycles. Built by Zhongshan Pengfei Electric Appliance Co., Ltd., this 1/2HP ECM motor also accepts 110-120V and 277V input, so service fleets can stock one multi-voltage replacement blower motor.

Detailed Description

208-230V service is common in commercial furnaces, air handlers and larger residential systems, where a 1/2HP 208-230V ECM motor has enough torque reserve for bigger blower wheels and longer duct runs. This unit brings electronically commutated motor (ECM) control to equipment that may still run on permanent split capacitor (PSC) motors. A brushless direct current rotor is driven electronically, so the controller can hold a selected torque as static pressure changes; the DC brushless motor design also removes brushes, cutting the wear points that fixed-speed units carry. The result is a furnace blower motor that moves air evenly and runs quietly.

Each 1/2HP ECM motor is produced in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs, and components from the stator windings to the D-shaft are checked against structural and electrical tolerances before shipment. Five discrete 24VAC speed taps let the installer match airflow to the equipment, and the constant torque motor behavior holds that airflow as filters load or ducts close. Because the unit is multi-voltage, the same ECM motor can be stocked for 110-120V, 208-230V or 277V jobs, which simplifies parts planning for distributors.

Key Features & Practical Benefits

• Multi-Model Direct Replacement: A standard NEMA 48 frame with identical mounting patterns, belly-band grooves and harness connectors lets technicians install this 1/2HP ECM motor in place of Genteq X13, 5SME39HXL350, 5SME39HXL090, 5SME39HXL110, 5SME39HXL145, Emerson or US Motors units without altering the bracket, so one replacement blower motor covers the common part numbers in a service fleet as a 5SME39HXL replacement motor.
• Constant Torque Multi-Speed Control: Five discrete 24VAC speed taps (S1 to S5) run in constant torque mode, and this constant torque motor reads the load and adjusts power to hold the selected torque as static pressure changes. Optional 0-10V analog and PWM control is available.
• 208-230V Commercial Coverage: The motor is wired for 208-230V service while also accepting 110-120V and 277V, matching the voltage spread found in commercial furnaces and rooftop air handlers.
• 1/2HP Torque Reserve: The 1/2HP output supports larger blower wheels and longer duct runs, so this furnace blower motor holds steadier airflow than smaller units.
• Built-In Protection: Thermal overload monitoring, locked-rotor protection and surge suppression are built into this ECM motor's control circuitry.

Technical Advantages & Engineering Expertise

This ECM motor is engineered for the realities of field replacement, where fit, airflow behavior and long-term reliability decide whether a job sticks.

1. Thermal Safeguards: Winding temperature sensing plus surge suppression help protect this ECM motor during peak cooling and heating demand.
2. Steady Airflow Under Load: Unlike PSC motors that lose efficiency against static pressure, this constant torque motor adjusts electronically, so the HVAC blower motor keeps air delivery steady.
3. OEM/ODM Flexibility: The in-house R&D center supports custom shaft lengths, keyways, private label branding and tailored wiring connectors for equipment builders.

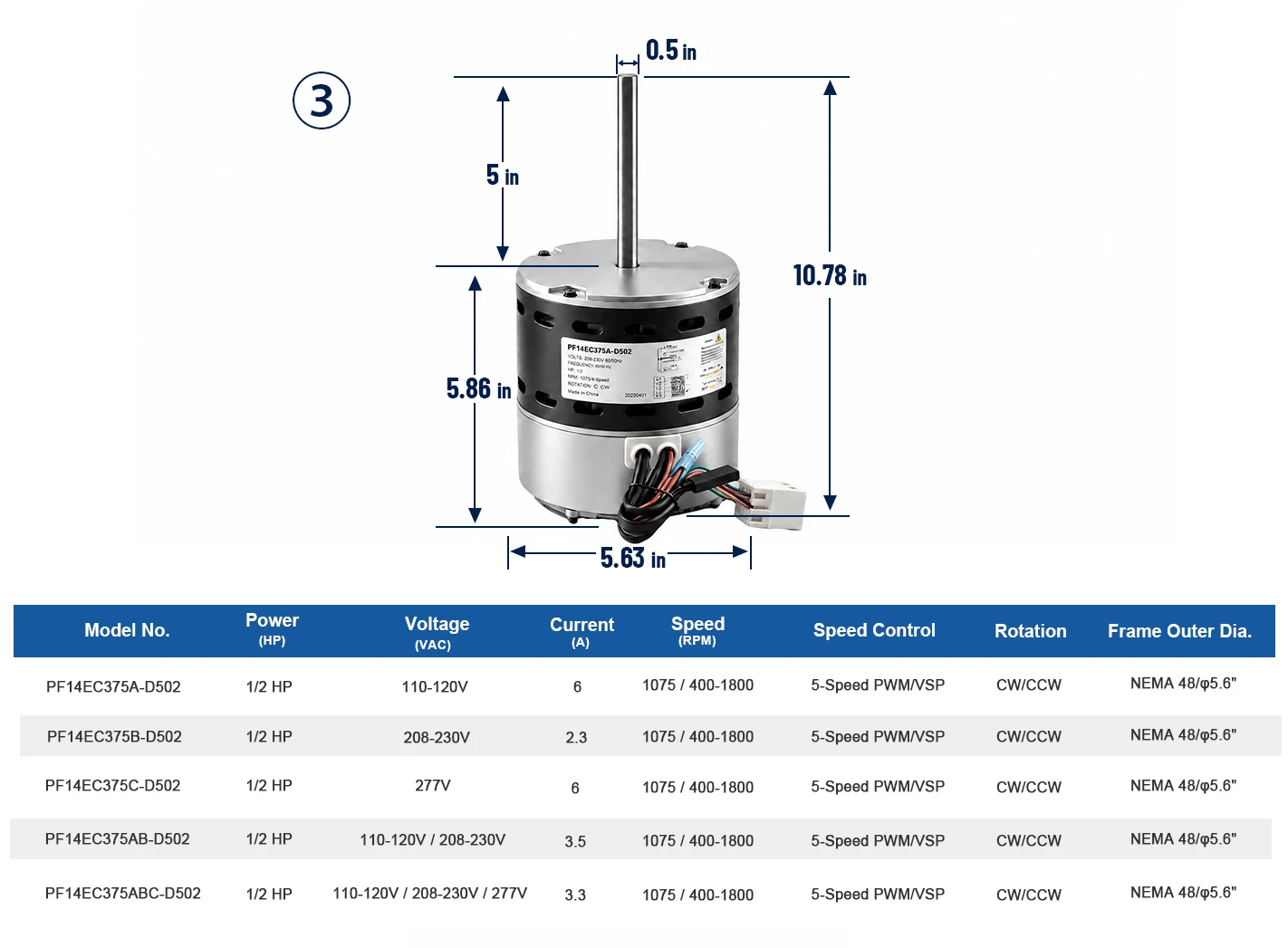

Technical Specifications Table

Application Scenarios

This 24VAC tap control motor fits the HVAC roles where 208-230V power and a 1/2HP ECM motor rating meet, acting as a multi-voltage replacement blower motor:

• Commercial Furnace Blower Upgrades: Direct replacement for Genteq X13 and 5SME39HXL series blowers in 208-230V commercial furnaces and air handlers.
• Large Residential Systems: Serves bigger residential furnaces whose blower wheel and duct layout call for 1/2HP output from a dependable HVAC blower motor.
• Condenser Fan Assemblies: Fits outdoor air conditioner and heat pump condenser fan duty as a dependable condenser fan motor.
• Custom OEM Air Handlers: Integrates into new climate equipment requiring precise torque regulation.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. The company manages tooling, metal stamping, injection molding and final motor assembly in-house, supported by a 25,000-square-meter facility and dedicated testing labs, and products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation.

Pilot testing programs with flexible MOQ and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume, and engineering support covers custom wiring, private labeling and volume supply agreements for this ECM motor.
