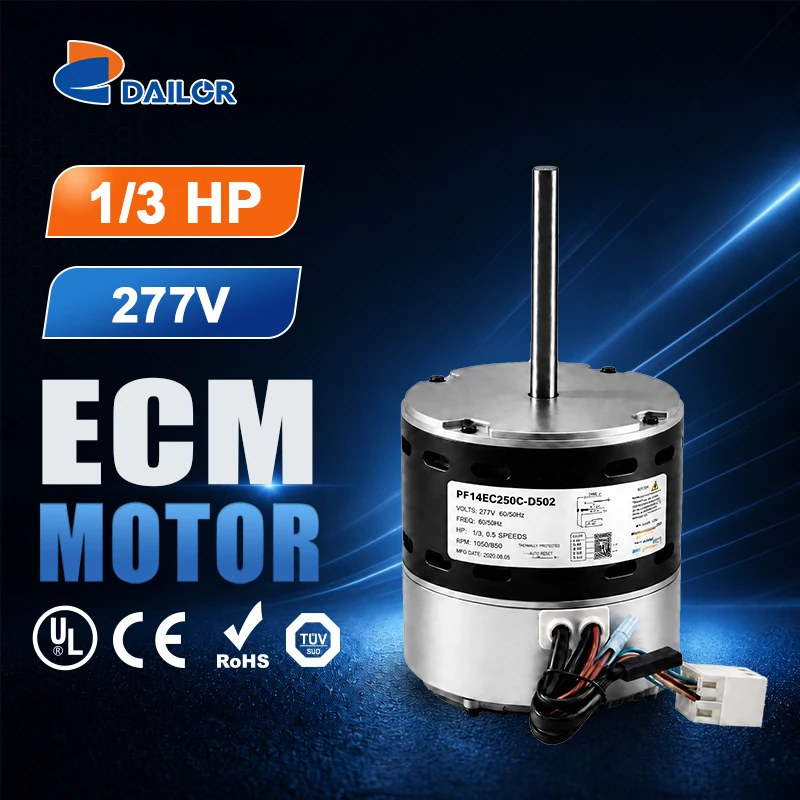

1/3HP 277V 1075RPM HVAC Direct Replacement ECM X-13 5SME39DXL210 6103E 5522ET 48 Frame Mount 5-Pin Speed Furnace Blower EC Motor

Product Overview (Brief Summary)

Commercial HVAC maintenance often runs on 277V, and this 1/3HP 277V ECM motor with 5-pin speed control directly replaces X13, 5SME39DXL210, 6103E and 5522ET units on a standard NEMA 48 frame. The 5-pin speed interface mirrors the harness layout used by many X13-series replacements, which helps technicians wire the motor quickly during furnace blower service calls. It turns at 1075RPM, holds constant torque with 24VAC tap control, and keeps airflow steady through commercial heating cycles. From Zhongshan Pengfei Electric Appliance Co., Ltd., this 277V ECM motor is built for quiet, stable operation and dependable long-term service in commercial equipment.

Detailed Description

For 277V commercial furnace service, an ECM motor is a sensible choice: unlike a PSC motor that runs at one speed, this 1/3HP 277V ECM motor adjusts electronically, holding constant torque as airflow demand changes. The brushless direct current motor is driven by electronic commutation, which avoids the mechanical wear points of brushed designs and lets this DC brushless motor run as a precise variable speed motor. Airflow stays steadier as static pressure shifts in ductwork, and the constant torque motor design suits equipment where filters load and dampers move during the season.

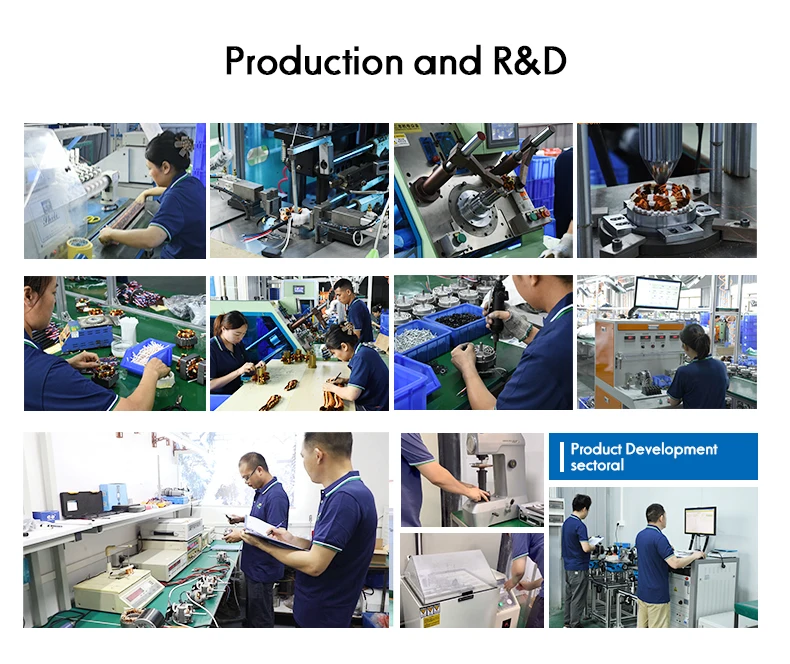

Manufactured in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs, each ECM motor is checked against structural and electrical tolerances before shipment. The 5-pin speed control interface with five 24VAC taps (S1 to S5) matches X13-style harnesses, so this ECM motor wires like the replacement blower motor most technicians already know, and optional 0-10V or PWM control is available for advanced integrations. Multi-voltage input covers 110-120V, 208-230V and 277V, so the same motor family serves multiple grids. This ECM motor is designed for daily duty in commercial furnace and air handler equipment, where service time and dependability both matter.

Key Features & Practical Benefits

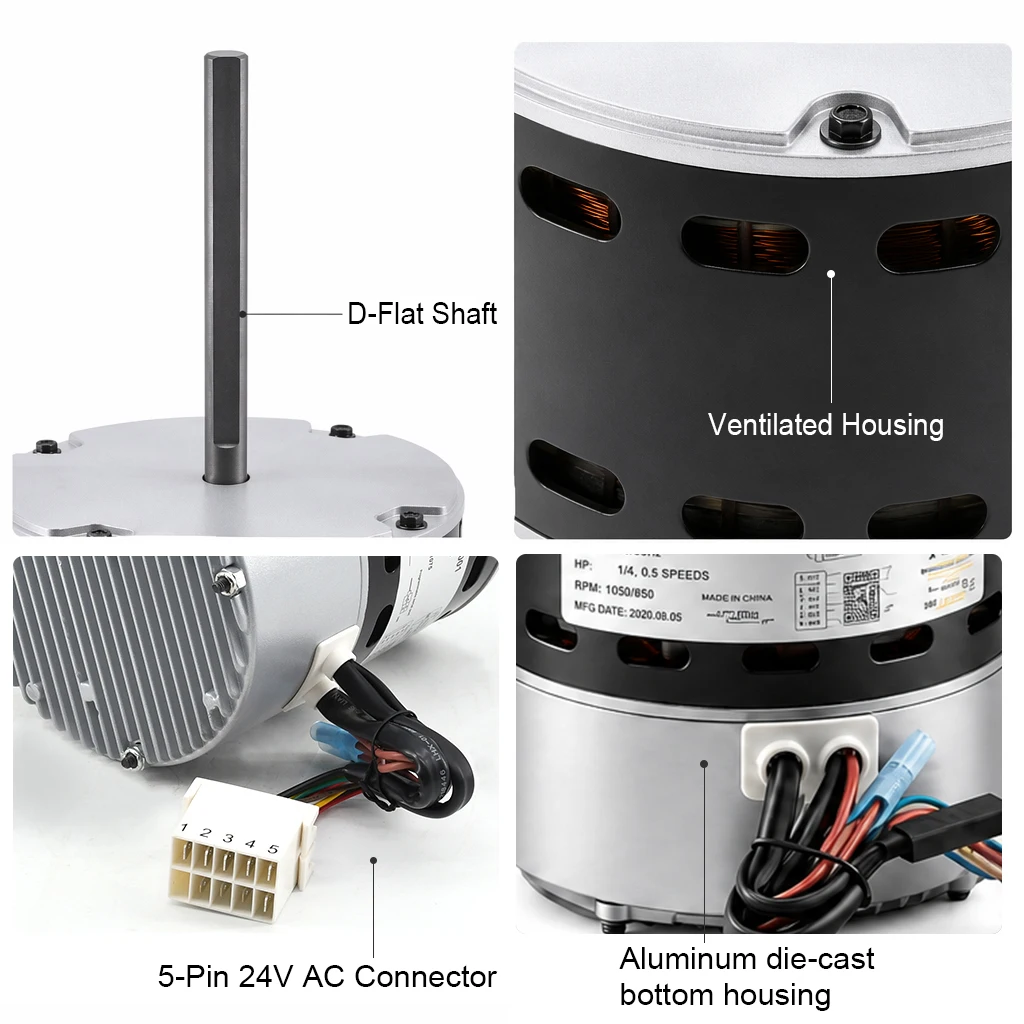

• 5-Pin Speed Control Interface: The 5-pin harness layout matches many X13-series replacement motors, simplifying wiring during furnace blower motor service calls. Five 24VAC taps (S1 to S5) run in constant torque mode, with optional 0-10V and PWM control.
• 277V Commercial Ready: Set up for 277V furnace blower applications, with multi-voltage input covering 110-120V, 208-230V and 277V, so one 277V ECM motor family covers several grids.
• Direct Replacement Fit: NEMA 48 frame with matching mounting patterns, belly-band grooves and harness connectors covers X13, 5SME39DXL210, 6103E, 5522ET, Emerson and US Motors blowers without bracket modification, so it fits as a direct replacement motor on standard furnace blower motor mounts.
• Constant Torque Airflow: In constant torque mode, the controller monitors load and balances power so the motor maintains target torque, a design that suits duct systems with shifting static pressure.
• Protection for Commercial Duty: The ECM carries locked-rotor defense, thermal overload monitoring and surge suppression for demanding commercial service.

Technical Advantages & Engineering Expertise

This ECM motor is designed for commercial environments where uptime, wiring speed and predictable airflow carry the most weight, and the NEMA 48 frame motor family keeps field wiring familiar.

1. Commercial-Grade Protection: Thermal sensors on the windings and surge suppression defend this ECM motor against overheating and line noise in commercial plants.
2. Dependable Airflow: The 1075RPM ECM motor adjusts commutation dynamically, holding steadier airflow against changing static pressure for this HVAC blower motor.
3. OEM/ODM Capability: Custom shafts, wiring, labeling and control-interface options are available from the in-house engineering team.

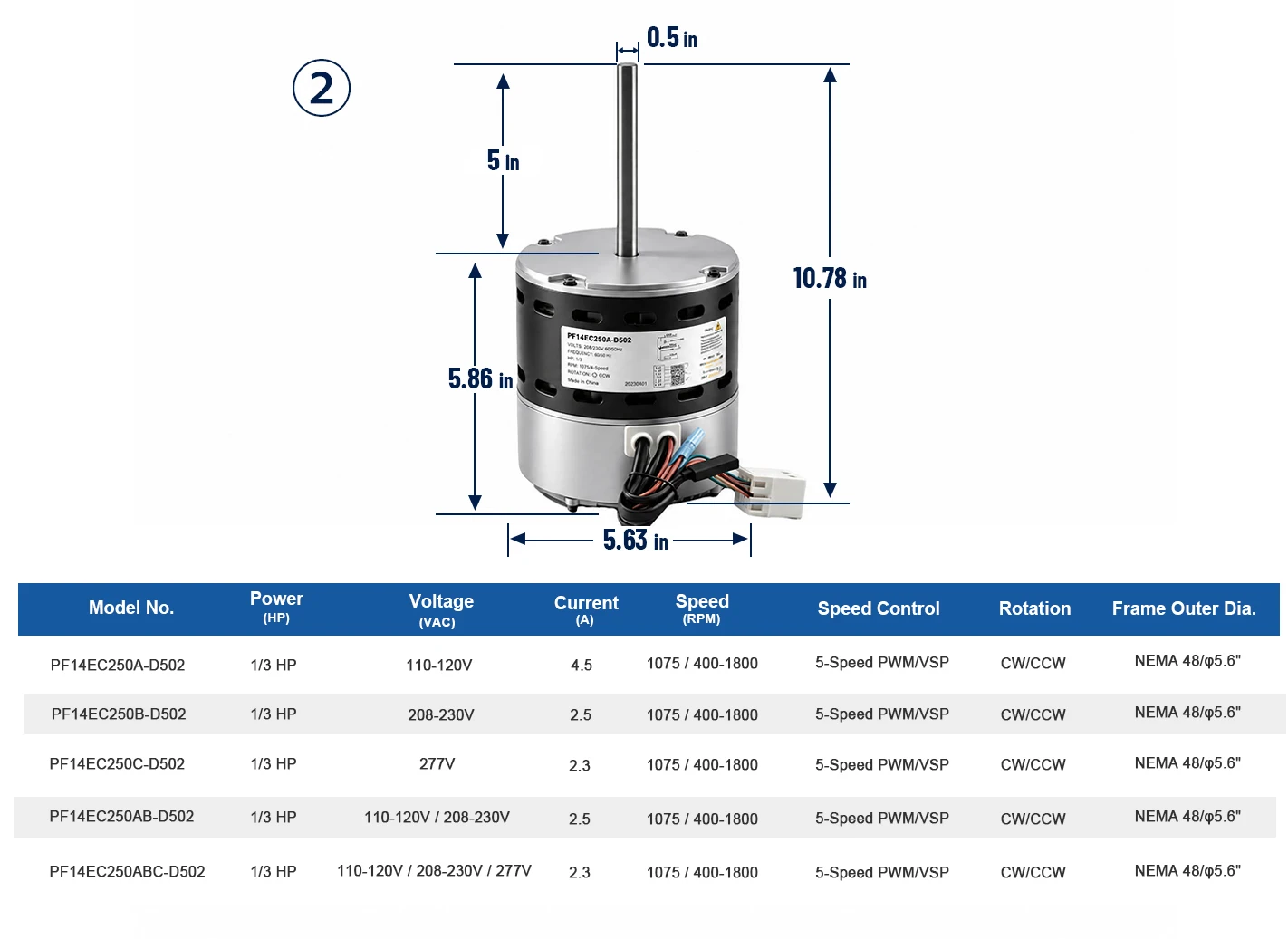

Technical Specifications Table

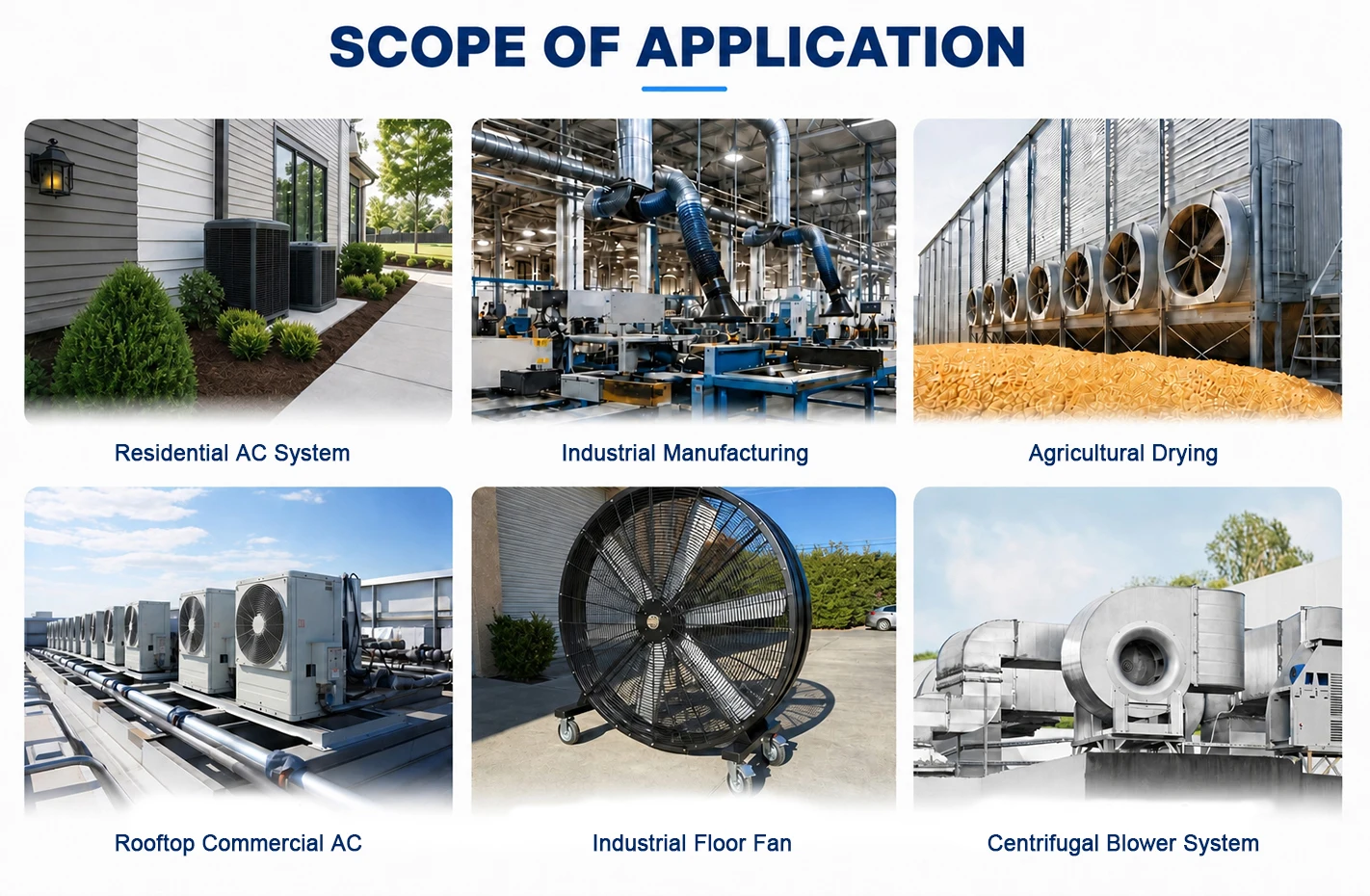

Application Scenarios

This 24VAC tap control motor serves the furnace and blower roles where 277V service and fast replacement count, functioning as a multi-voltage ECM motor:

• Commercial Furnace Blowers: Direct drop-in replacement blower motor for 277V commercial furnace configurations.
• Residential Furnace Blowers: Serves upflow, downflow and horizontal furnace blowers where 277V service is available.
• Condenser Fan Assemblies: Fits outdoor split-system air conditioner and heat pump condenser fans.
• Custom OEM Air Handlers: Integrates into new climate equipment requiring precise torque regulation from this ECM motor.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. The company manages tooling, metal stamping, injection molding and final motor assembly in-house, supported by a 25,000-square-meter facility, an independent R&D center and dedicated testing labs, and its products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation that should be confirmed against the specific model.

Pilot testing programs with flexible MOQ and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume, and engineering support covers custom wiring, private labeling and volume supply agreements for this ECM motor.
