1HP 110-120V/208-230V 1075RPM OEM Replacement Constant Torque ECM X-13 North American Furnaces Blower Fan ECM Motor

Product Overview (Brief Summary)

Furnace builders and aftermarket distributors across North America work with two common supplies: 110-120V single-phase for most homes and 208-230V two-wire systems for larger or multi-family equipment. This 1HP ECM motor covers both on one part number, so a single unit fits standard furnaces wired either way. It turns at 1075RPM, uses a NEMA 48 frame with the X-13 hole pattern, and connects through the familiar constant torque control harness. The result is a replacement blower motor and blower fan motor that OEM furnace programs and service counters can stock for typical North American furnace blowers. Zhongshan Pengfei Electric Appliance Co., Ltd. supplies this ECM motor as a dependable HVAC blower motor for furnace and air handling duty.

Detailed Description

Two-voltage coverage matters because furnace wiring differs between regions and equipment classes. A home in one area may run a 110-120V furnace while a nearby multifamily building uses 208-230V supply. Instead of carrying two motor numbers, a distributor or OEM can use one dual-voltage ECM motor rated for both. For OEM buyers, stocking one dual-voltage ECM motor instead of two single-voltage numbers simplifies purchasing and trims warehouse parts lists.

The motor combines a permanent magnet BLDC rotor with an electronic controller that adjusts commutation to hold constant torque as duct pressure changes, keeping airflow steady across heating cycles. The X-13 style harness and 5-speed 24VAC control connect to existing furnace controls without a new interface, so changeouts stay short. As a variable speed motor, the unit trims output to match the load instead of cycling at one speed. Built as an OEM ECM motor, the unit accepts private labeling and custom harnesses for furnace programs.

Quality is controlled through a 25,000-square-meter plant with CNC machining and testing labs; every unit receives electrical and dimensional checks before shipment.

Key Features & Practical Benefits

• Dual-Voltage North American Coverage: One part handles 110-120V and 208-230V supply, matching the wiring found across residential furnaces and multifamily equipment.
• X-13 Constant Torque Control: The 5-speed 24VAC tap interface follows the X-13 convention, so this multi-speed ECM motor keeps the harness familiar for furnace techs.
• Steady Airflow in Heating Cycles: The constant torque ECM motor controller adjusts torque as static pressure changes, so this HVAC blower motor holds steadier airflow through the cycle.
• 1HP Output for Furnace Blower Fan Duty: 1HP supports furnace blower motor and blower fan motor applications with larger wheels and longer duct runs.
• Quiet Operation for Living Spaces: Smooth commutation and balanced rotation help keep noise low in occupied homes.

Technical Advantages & Engineering Expertise

Specifying a dual-voltage ECM motor for furnace platforms comes down to wiring, control and fit.

1. Wiring Flexibility: 110-120V and 208-230V connections are handled by one motor, simplifying OEM BOMs and service stock for this HVAC ECM motor.
2. Control Compatibility: The 5-speed 24VAC tap control layout matches X-13 harnesses, with optional 0-10V and PWM inputs for newer controls.
3. Mounting Fit: The NEMA 48 frame (5.6-inch diameter), hole positions and belly-band grooves follow standard furnace motor conventions; custom shafts and connectors support OEM programs.

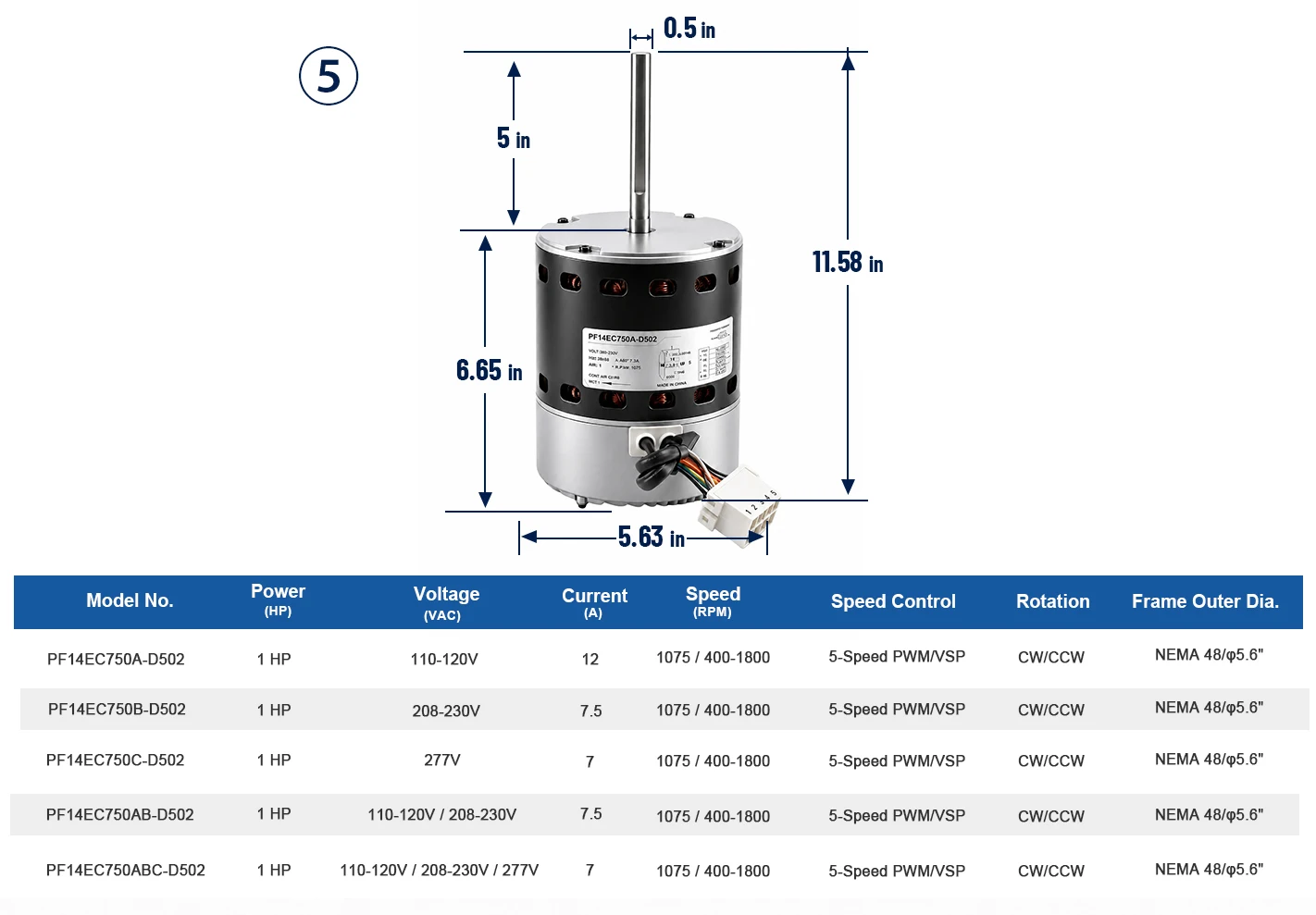

Technical Specifications Table

Application Scenarios

Common placements for this 1HP dual-voltage ECM motor:

• Residential Furnace Blowers: Replaces furnace blower motors in 110-120V gas and electric furnaces.
• Multifamily and Light Commercial Units: Fits 208-230V furnace blower motor and blower fan motor duty in apartment and small commercial systems.
• Air Handlers and Fan Coils: Serves air handler blower motor duty in indoor units and heat pump air handlers.
• OEM Furnace Production: Integrated into new furnace platforms with custom shafts, harnesses and private labeling.

Commercial Value & Partnership Benefits

OEM furnace makers and wholesale distributors value a dual-voltage ECM motor that simplifies sourcing across the North American market. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years, holds more than 100 patents and is recognized as a National High-Tech Enterprise. The 25,000-square-meter facility covers tooling, metal stamping, injection molding, CNC machining and final motor assembly, supporting volume supply, in-process quality management and competitive pricing. Products are sold in more than 20 countries and regions, and ISO 9001, UL, CCC, CE and RoHS documentation should be confirmed against the specific model.

Flexible MOQ and prompt sample delivery let OEMs and distributors validate this 1HP ECM motor on real furnace decks before volume commitments. Engineering support covers custom wiring layouts, connector options, private labeling and supply agreements, aligning this dual-voltage ECM motor with North American furnace and HVAC ECM motor programs.
