1/4HP 110-120V 208-230V 1075RPM Dual Voltage Replace 10856 10857 5522ET 48 Frame Air Handling Unit Fan Coil ECM Motor

Product Overview (Brief Summary)

When HVAC technicians service air handling units and fan coil equipment, a dependable ECM motor upgrade matters. The 1/4HP 110-120V 208-230V ECM motor provides a direct replacement solution for air handling unit motor and fan coil motor applications. This 1075RPM ECM motor uses a standard NEMA 48 frame with matching mounting hole patterns, belly-band grooves and harness connectors, so it drops into existing equipment and replaces legacy units such as the 10856, 10857 and 5522ET series, as well as older Genteq X13, Emerson and US Motors blowers, without bracket modification. A 5-speed 24VAC interface with constant torque motor behavior keeps airflow steady through heating and cooling cycles, while dual voltage support (110-120V and 208-230V) fits common regional grids. This ECM motor from Zhongshan Pengfei Electric Appliance Co., Ltd. combines quiet operation and dependable long-term performance.

Detailed Description

The move from traditional permanent split capacitor (PSC) motors to electronically commutated motor (ECM) technology has changed how air handling equipment manages airflow. This 1/4HP ECM motor acts as a practical bridge between older fan coil systems and current energy expectations. Built on permanent magnet brushless direct current (BLDC) principles, the unit maintains steady rotation and adjusts torque delivery as static pressure in the ductwork changes, which helps this HVAC blower motor keep airflow consistent through heating and cooling cycles. As a variable speed DC brushless motor, it adjusts output to match demand rather than cycling at a fixed speed.

Each dual voltage ECM motor is produced in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs. Components, from stator windings to the D-shaped output shaft, are checked against structural and electrical tolerances before shipment. This 24VAC speed control motor supports consistent system reliability and simpler field maintenance, while the constant torque motor design contributes to efficient operation across varied conditions. Whether you are servicing an air handling unit motor or replacing a fan coil motor, this ECM motor is designed for daily climate duty.

Key Features & Practical Benefits

• True Plug-and-Play Direct Replacement: Engineered around a standard NEMA 48 frame with identical mounting hole patterns, belly-band grooves and standard harness connectors, this replacement blower motor lets technicians swap out older Genteq X13, Emerson or US Motors units without altering existing brackets. It also covers the 10856, 10857 and 5522ET series, simplifying service fleet inventory.
• 5-Speed 24VAC Tap Control: The motor ships with five discrete 24VAC speed taps (S1 to S5) in constant torque mode, with optional 0-10V analog and PWM digital signal control. This 24VAC speed control interface suits air handling unit motor, fan coil motor and blower designs that use standard HVAC controls.
• Multiple Power Ratings: Available in 1/4HP, 1/3HP, 1/2HP, 3/4HP and 1HP on the same NEMA 48 frame, this ECM motor lets distributors consolidate inventory while matching the correct power rating to each air handler and fan coil application.
• Low-Noise Operation: Aerodynamic optimization and smooth electronic commutation help limit vibration and noise, making this ECM motor and HVAC blower motor well suited to quiet indoor spaces in offices, hotels and residential buildings.
• Dual Voltage and Circuit Protection: As a dual voltage motor, this ECM motor accepts 110-120V and 208-230V inputs, with universal multi-voltage support covering 110-120V, 208-230V and 277V where needed. Built-in thermal overload monitoring, locked-rotor defense and surge suppression help protect this ECM motor during unexpected power events.

Technical Advantages & Engineering Expertise

Selecting an air-moving component requires attention to thermal management, mechanical fit and operational stability. This ECM motor is engineered around those three concerns.

1. Advanced Thermal Safeguards: Internal windings are protected by thermal sensors and active surge suppression, which helps protect this ECM motor from localized overheating during peak heating or cooling cycles.
2. Maintained Airflow Efficiency: Unlike fixed-speed PSC motors, whose airflow can drop sharply against high static pressure, this 1075RPM ECM motor adjusts electronic commutation dynamically to keep airflow steadier. In a constant torque motor, the controller monitors load and adjusts power to maintain target torque, which is why ECM motor technology is widely used in modern climate equipment.
3. Custom OEM and ODM Flexibility: An in-house research and development center supports custom shaft lengths, keyways, private label branding and tailored wiring connectors, so OEM customers can integrate this HVAC blower motor into proprietary air handling and fan coil equipment with specific mounting and control requirements.

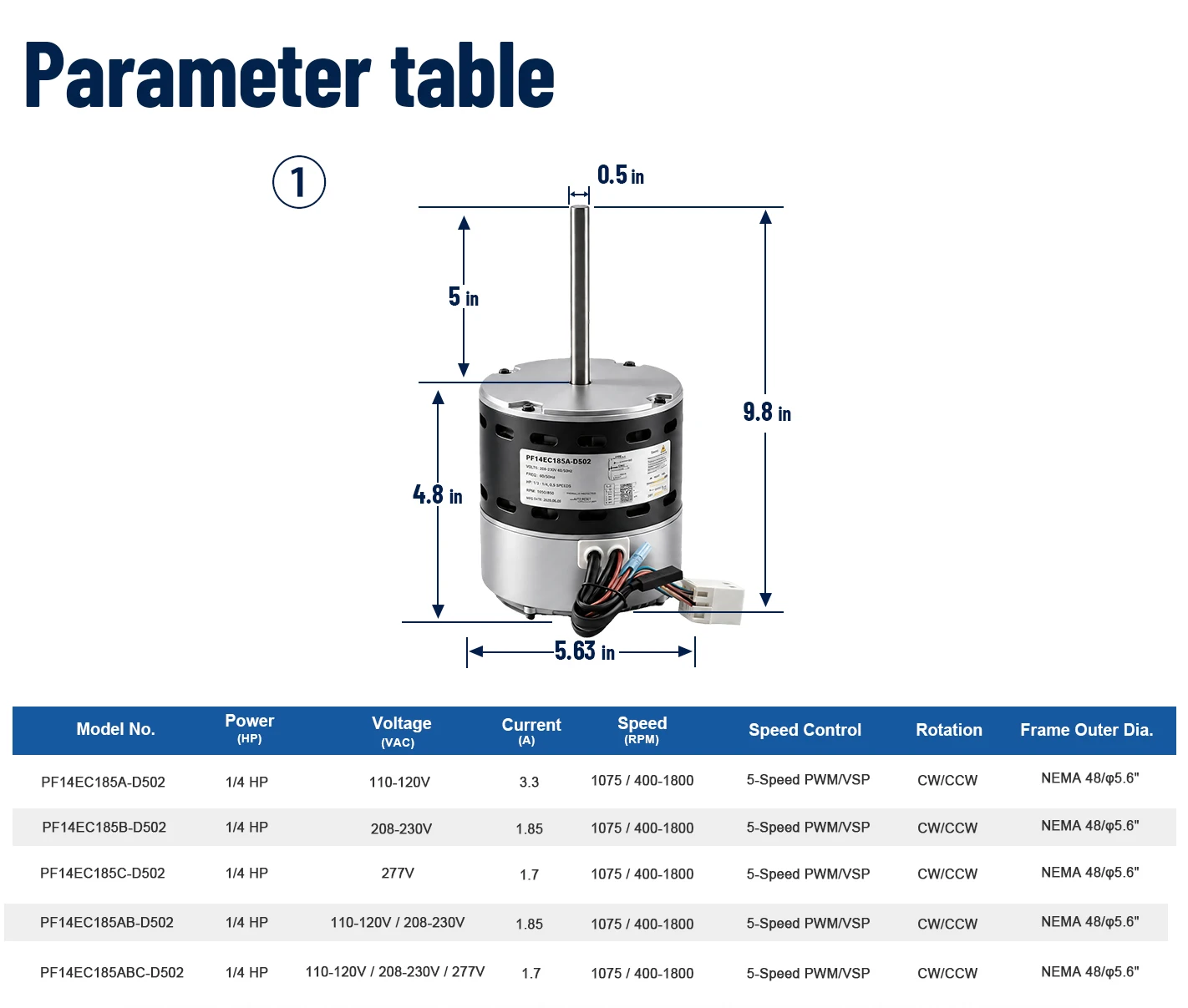

Technical Specifications Table

Application Scenarios

This versatile 24VAC speed control motor is widely deployed across air handling, fan coil and blower motor applications:

• Air Handling Unit Motors: Direct drop-in replacement blower motor for standard AHU fan sections in commercial and light industrial ventilation systems.
• Fan Coil Unit Applications: Reliable drive for fan coil motors in hotels, offices and residential hydronic systems, supporting consistent indoor air movement.
• Condenser Fan Assemblies: Serves outdoor split-system air conditioners and heat pump systems where weather-resistant performance matters; a dependable condenser fan motor keeps the system moving air.
• Custom OEM Air Handlers: This ECM motor integrates into newly manufactured climate control equipment that requires precise torque regulation.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. The company manages tooling, metal stamping, injection molding and final motor assembly in-house, supported by a 25,000-square-meter facility, an independent R&D center and dedicated testing labs. This vertical integration supports stable volume supply and competitive pricing for bulk buyers, and its products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation that should be confirmed against the specific model.

Pilot testing programs with flexible minimum order quantities (MOQ) and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume. Engineering support covers custom wiring layouts, private label options and volume supply agreements, helping HVAC distributors and OEM equipment builders match this ECM motor to regional voltage requirements and air handling unit motor or fan coil motor replacement programs.
