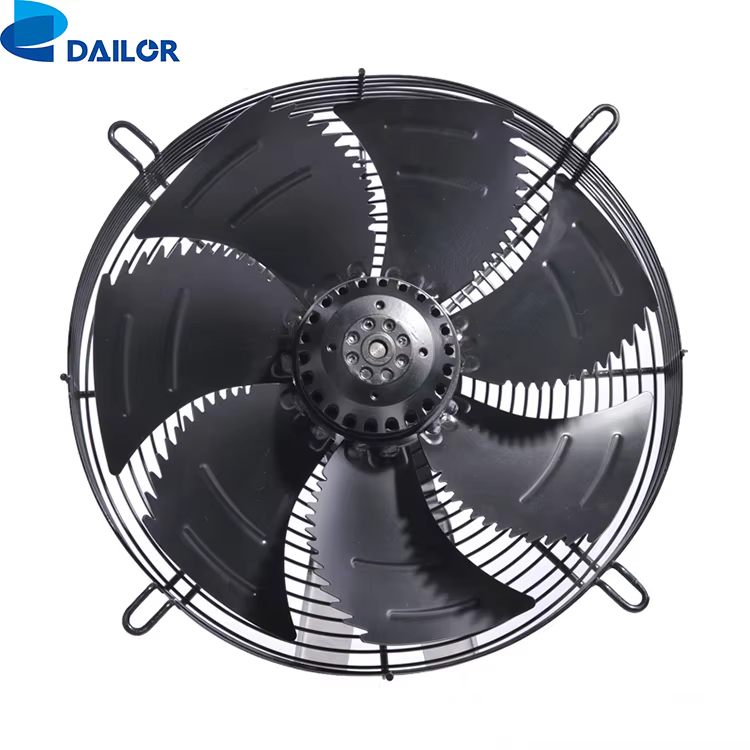

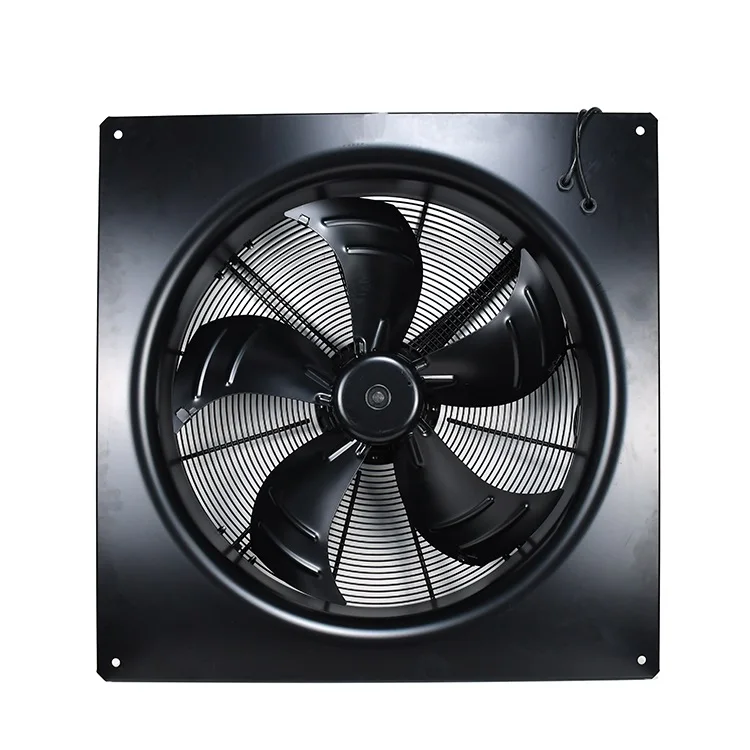

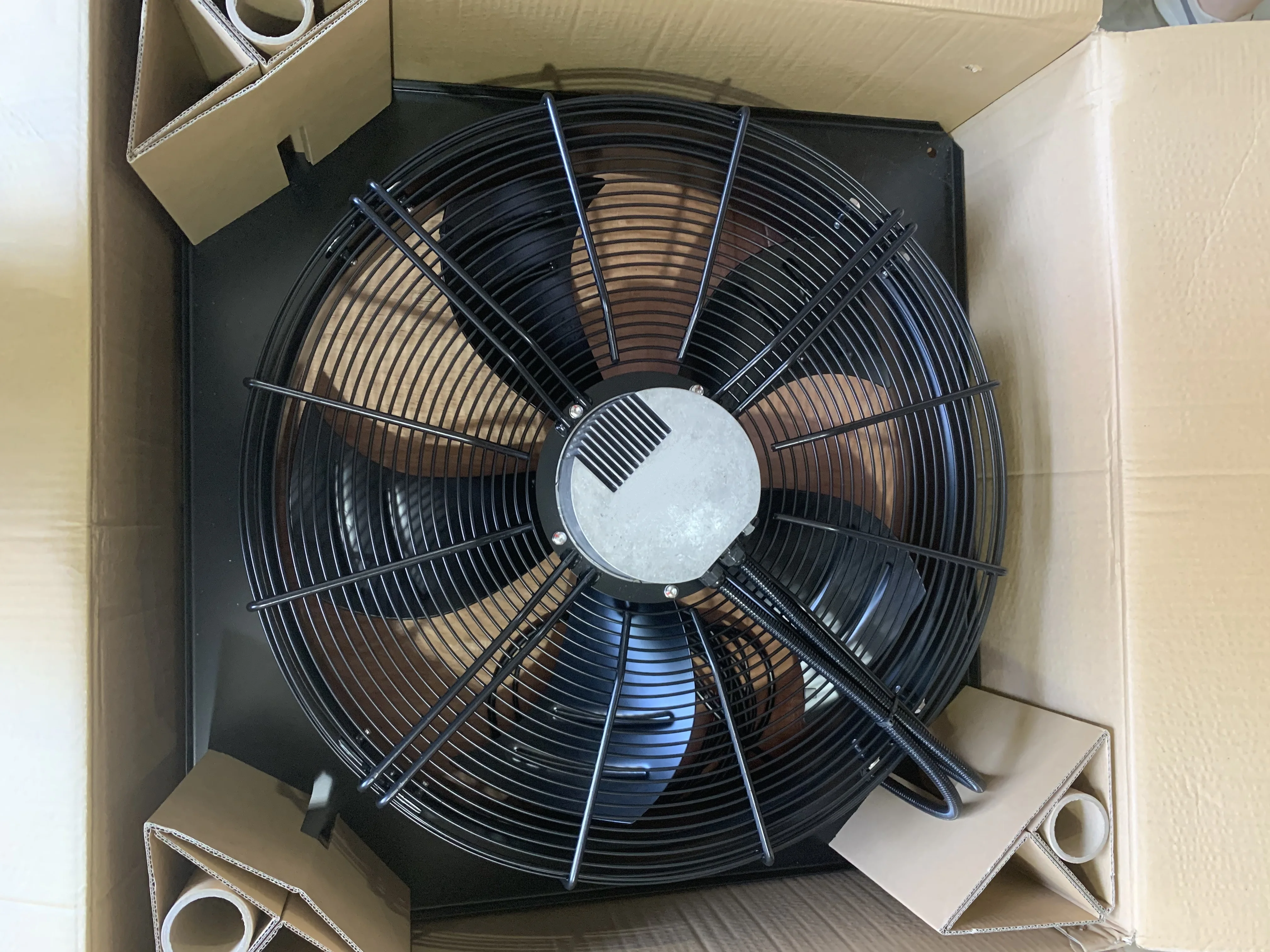

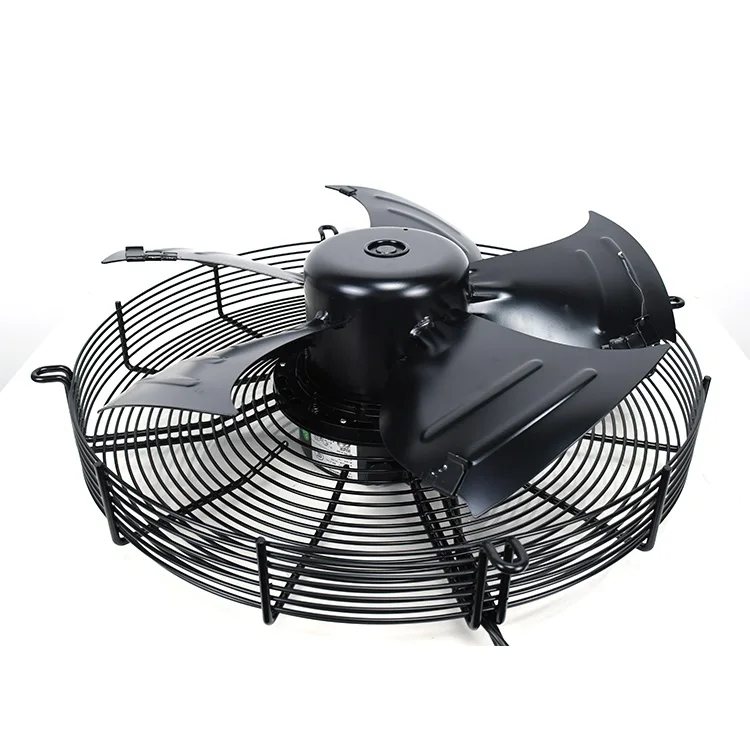

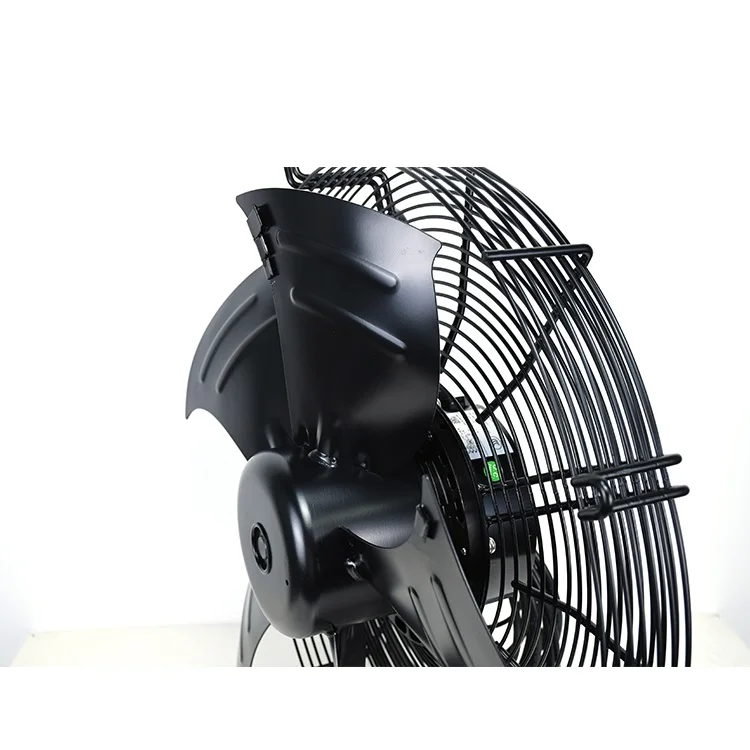

This is an axial fan designed for the HVAC and heat pump industry. Ranging in size from 200mm to 900mm, it offers flexibility for various applications. It can operate on DC, EC (Electronically Commutated), or AC power sources, providing versatility in different electrical setups. The fan features a robust construction with a protective wire guard and durable blades, ensuring reliable performance. Its high - efficiency motor enables effective cooling, making it an ideal choice for industrial cooling requirements. Whether for ventilation or heat exchange systems, this axial fan combines functionality and durability to meet the demands of the industry.

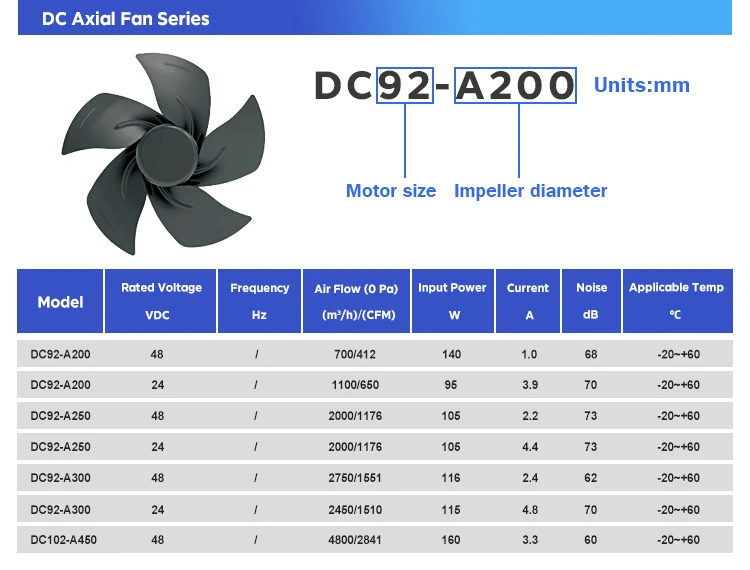

| Model |
Rated Voltage VDC |
Frequency Hz |
Air Flow (0 Pa) (m³/h)/(CFM) |
Input Power W |
Current A |
Noise dB |
Applicable Temp °C |
|---|---|---|---|---|---|---|---|
| DC92-A200 | 48 | / | 700/412 | 140 | 1.0 | 68 | -20~+60 |
| DC92-A200 | 24 | / | 1100/650 | 95 | 3.9 | 70 | -20~+60 |
| DC92-A250 | 48 | / | 2000/1176 | 105 | 2.2 | 73 | -20~+60 |
| DC92-A250 | 24 | / | 2000/1176 | 105 | 4.4 | 73 | -20~+60 |
| DC92-A300 | 48 | / | 2750/1551 | 116 | 2.4 | 62 | -20~+60 |
| DC92-A300 | 24 | / | 2450/1510 | 115 | 4.8 | 70 | - ~+60 |
| DC102-A450 | 48 | / | 4800/2841 | 160 | 3.3 | 60 | -20~+60 |
 |
 |
 |
|

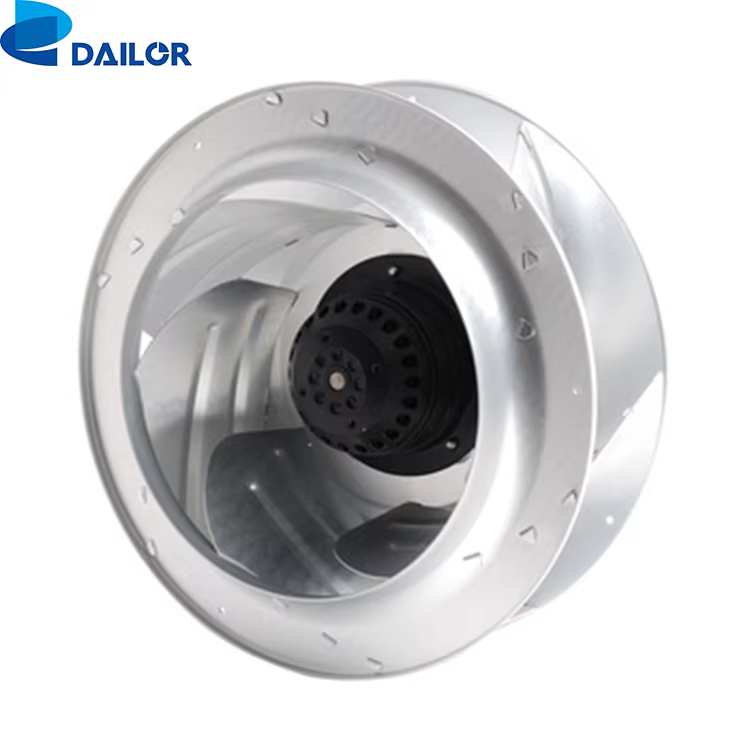

Backward Centrifugal Fan Click to Select |
Axial Fan Click to Select |

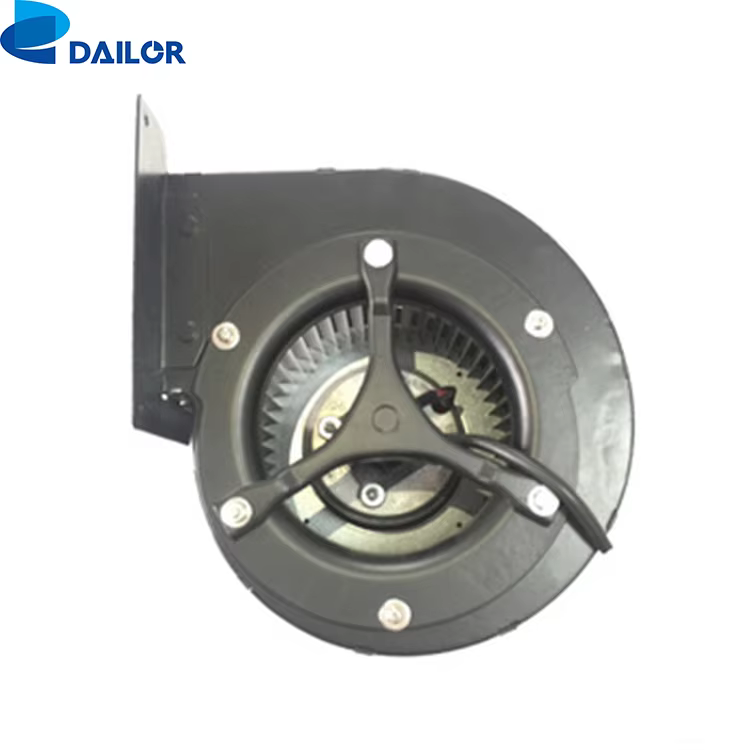

Forward Centrifugal Fan Click to Select |
