3/4HP 110-120V/208-230V/277V 1075RPM Replacement X-13 48 Frame Constant Torque Air Conditioner Central Heating Blower Motor

Product Overview (Brief Summary)

HVAC service companies face a parts management problem: different equipment generations run on 120V, 240V or 277V supply. This 3/4HP tri-voltage ECM motor collapses those SKUs into one replacement blower motor. Rated at 1075RPM on a standard NEMA 48 frame, this replacement blower motor covers the X-13 constant torque family and accepts 110-120V, 208-230V and 277V input, so the same motor number serves air conditioner blower motor and furnace blower motor duty across most North American installs. The constant torque ECM motor design holds airflow steady through cooling and heating seasons, and five 24VAC taps let technicians set fan output. This 3/4HP ECM motor from Zhongshan Pengfei Electric Appliance Co., Ltd. is a dependable HVAC blower motor for air conditioner and central heating systems.

Detailed Description

The move to ECM technology changed how HVAC blower systems handle airflow, and tri-voltage capability extends that benefit across regional supply differences. This 3/4HP ECM motor uses permanent magnet BLDC construction; the controller adjusts electronic commutation so the constant torque motor holds torque near the set point as filters load, coils foul and supply voltage shifts within the rated range. Because one motor accepts three voltage classes, contractors can stock a single 48 frame blower motor instead of separate 120V, 240V and 277V units.

This ECM motor follows X-13 mounting conventions, including hole patterns, belly-band grooves and harness connectors, so retrofit work stays limited to swapping the unit. Production takes place in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs, and each unit is checked against structural and electrical tolerances before shipment. For air conditioner fan coil and central heating furnace blower work, the 24VAC tap control interface provides five discrete speeds, with optional 0-10V and PWM control.

Key Features & Practical Benefits

• Tri-Voltage Supply Coverage: One 3/4HP ECM motor accepts 110-120V, 208-230V and 277V input, letting distributors consolidate parts for air conditioner and central heating service fleets.
• Constant Torque Through the Seasons: The constant torque ECM motor holds airflow steadier as cooling demand gives way to heating demand, supporting consistent air conditioner blower motor and furnace blower motor performance.
• X-13 Compatible 48 Frame: NEMA 48 frame dimensions with matching mounting holes, belly-band slots and harness arrangement let this replacement blower motor drop into legacy X-13 blower decks.
• Multi-Speed ECM Motor Taps: Five speed taps (S1 to S5) run in constant torque mode, with optional 0-10V and PWM control for advanced integrations.
• Quiet Operation: Smooth electronic commutation and balanced rotation keep noise low in homes and light commercial buildings.

Technical Advantages & Engineering Expertise

A tri-voltage constant torque motor succeeds when three engineering concerns are handled well: thermal behavior, airflow consistency across voltage classes, and mechanical fit.

1. Thermal Safeguards: Winding sensors and active surge suppression reduce the risk of localized overheating during peak cooling or heating cycles.
2. Airflow Consistency: Unlike fixed-speed PSC motors whose output can sag against high static pressure, this ECM motor adjusts electronic commutation dynamically, keeping this HVAC blower motor closer to target airflow.
3. Custom OEM and ODM Flexibility: Custom shafts, keyways, private label branding and tailored connectors are available through the in-house R&D center, so equipment makers can integrate this HVAC ECM motor into proprietary air conditioner and central heating platforms.

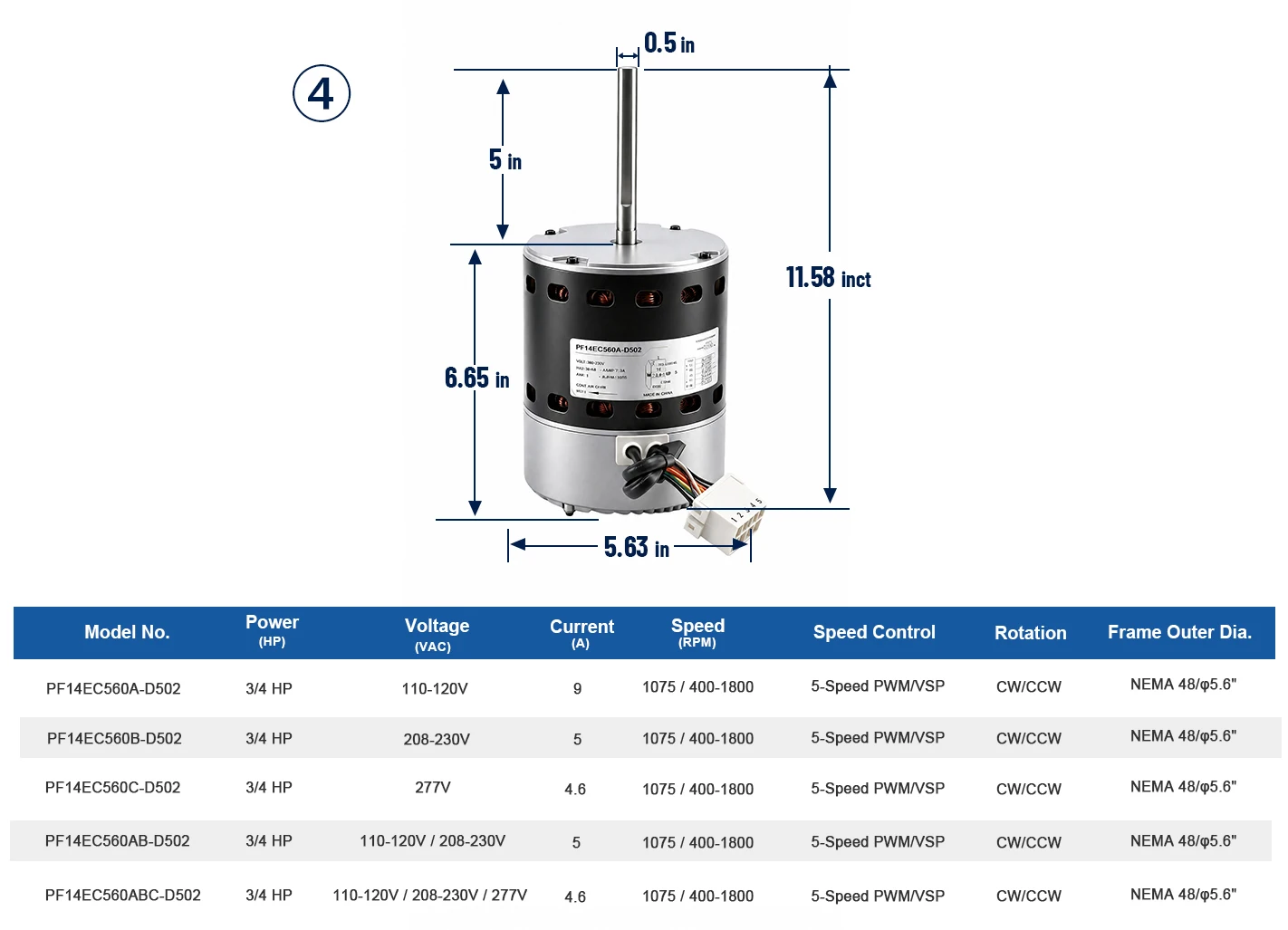

Technical Specifications Table

Application Scenarios

This tri-voltage ECM motor serves air conditioner and central heating platforms:

• Air Conditioner Fan Coils: Air conditioner blower motor duty in indoor fan coils and air handlers, where the same 3/4HP ECM motor handles 120V and 240V residential units.
• Central Heating Furnaces: Furnace blower motor service in upflow, downflow and horizontal furnaces, with constant torque behavior supporting steadier airflow through heating cycles.
• Condenser Fan Duty: Serves outdoor split-system air conditioners and heat pumps where a dependable condenser fan motor keeps the system moving air.
• Wholesale Parts Consolidation: One motor number covers 277V commercial rooftop units and 120V residential systems, simplifying stocking for HVAC distributors and service fleets.

Commercial Value & Partnership Benefits

For distributors and HVAC service contractors, a tri-voltage motor simplifies inventory planning and reduces the chance of carrying the wrong voltage. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years, holds more than 100 patents and is recognized as a National High-Tech Enterprise. The company operates a 25,000-square-meter facility with in-house tooling, metal stamping, injection molding, CNC machining and final motor assembly, supporting stable volume supply, in-process quality management and competitive pricing. Products are sold in more than 20 countries and regions, and ISO 9001, UL, CCC, CE and RoHS documentation should be confirmed against the specific model.

Flexible MOQ and prompt sample fulfillment let contractors test this 3/4HP ECM motor against their air conditioner and furnace blower decks before committing to volume. Engineering support covers custom wiring, connector layouts, private labeling and supply agreements, helping distributors and equipment builders match this tri-voltage ECM motor to regional grid requirements and air conditioner or central heating programs.
