3/4HP 110-120V 1075RPM Replacement Constant Torque ECM X-13 Series Low Temperature Commercial Refrigeration Condenser ECM Motor

Product Overview (Brief Summary)

Commercial refrigeration systems depend on a refrigeration condenser motor that moves heat reliably in cold environments. This 3/4HP ECM motor is built for low temperature commercial refrigeration condenser duty: it delivers 1075RPM from a standard NEMA 48 frame, runs on 110-120V supply, and serves as a direct replacement condenser motor for legacy Genteq X13 series units used on cold storage, walk-in cooler and refrigerated display case condensing units. The constant torque ECM motor behavior keeps airflow steady as condenser pressure and ambient temperature change, and multi-speed 24VAC control lets the refrigeration technician match fan output to the system. This refrigeration ECM motor from Zhongshan Pengfei Electric Appliance Co., Ltd. supports dependable long-term operation for commercial refrigeration repair shops and condensing unit OEMs.

Detailed Description

Condenser fans remove heat from refrigerant after it leaves the compressor, and airflow consistency keeps head pressure stable across ambient swings. This 3/4HP ECM motor applies permanent magnet BLDC construction, and the controller adjusts electronic commutation so this condenser fan motor holds torque near the set point as coil fouling and outdoor temperature change. For low temperature applications, dependable cold-start behavior and steady airflow matter because a stalled condenser fan can push system pressure up and shorten compressor life.

The motor uses the NEMA 48 frame conventions of the X-13 series, so this replacement condenser motor mounts into existing condenser fan decks with matching hole patterns and belly-band grooves. Five 24VAC tap control settings run in constant torque mode, and each unit is produced at a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs. Every refrigeration condenser motor passes structural and electrical checks before shipment, supporting dependable service in commercial refrigeration equipment.

Key Features & Practical Benefits

• Low Temperature Reliability: Built for condenser duty on low temperature commercial refrigeration systems, this 3/4HP ECM motor starts dependably and holds airflow as ambient and coil conditions change.
• Constant Torque ECM Motor Airflow: Electronic commutation adjusts torque as condenser pressure varies, helping the condenser fan motor keep head pressure steadier than PSC designs.
• X-13 Series Drop-In Fit: The NEMA 48 frame, mounting holes, belly-band slots and harness arrangement follow legacy Genteq X-13 series units, so this replacement condenser motor fits existing condenser decks.
• Multi-Speed ECM Motor Control: Five speed taps (S1 to S5) run in constant torque mode, with optional 0-10V and PWM control for advanced system integrations.
• Built-In Protection: Thermal overload monitoring, locked-rotor protection and surge suppression are integrated into the ECM motor control board.

Technical Advantages & Engineering Expertise

Selecting a commercial refrigeration motor for condenser duty comes down to three engineering concerns: cold-environment endurance, airflow steadiness and mechanical fit.

1. Cold-Start Endurance: Winding sensors and active surge suppression support dependable operation through low temperature cycling in cold storage and outdoor condensing locations.
2. Airflow Steadiness: As a variable speed motor, electronic commutation adjusts torque when condenser pressure changes, holding condenser fan airflow closer to target than fixed-speed alternatives.
3. OEM and ODM Fit: Custom shafts, keyways, connector layouts and private label branding are available through the in-house R&D center for refrigeration equipment manufacturers.

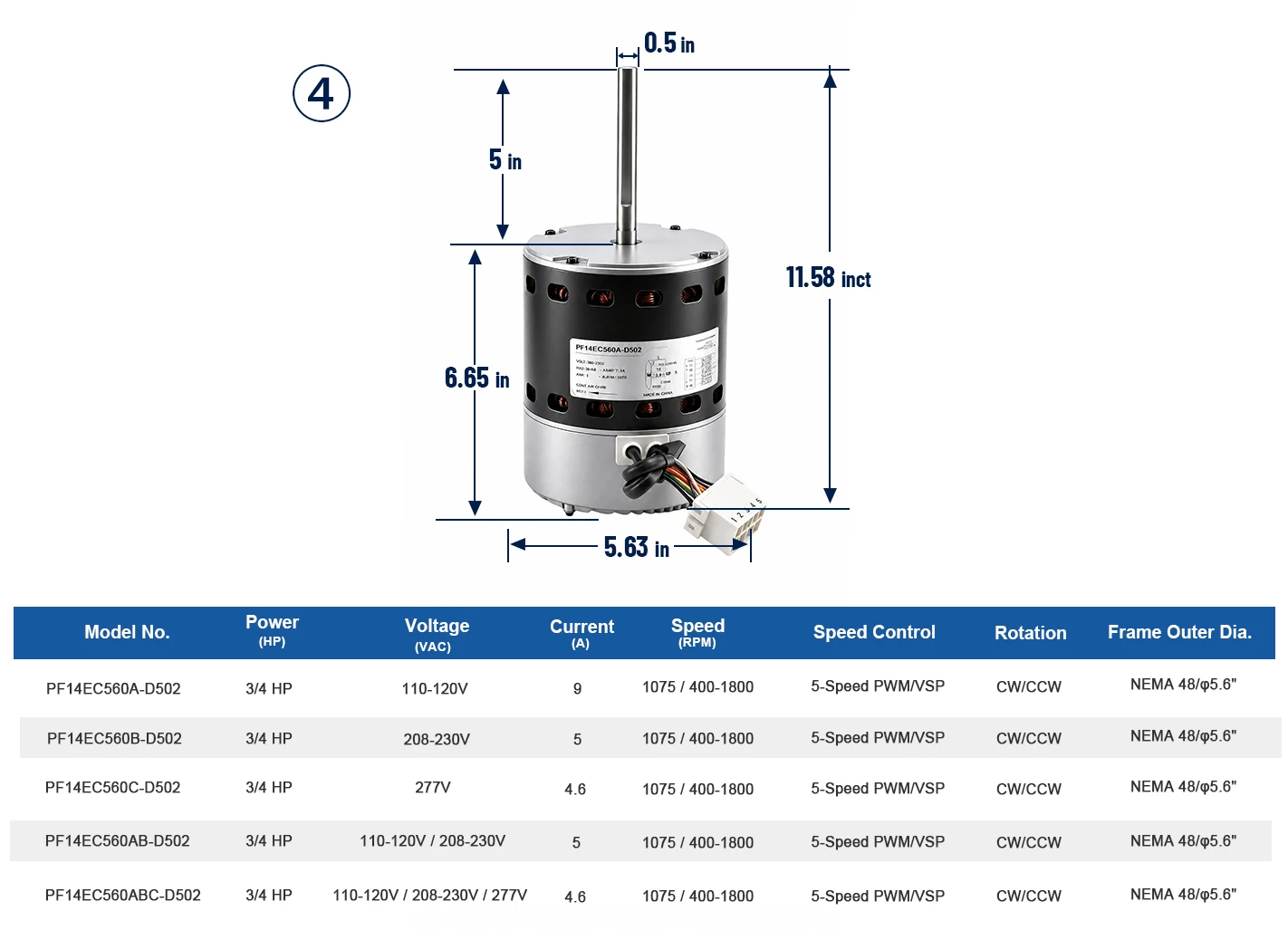

Technical Specifications Table

Application Scenarios

This 3/4HP ECM motor serves commercial refrigeration platforms including:

• Cold Storage and Walk-in Cooler Condensers: Condenser fan motor duty on low temperature cold storage and walk-in cooler condensing units, where steady airflow supports stable head pressure.
• Refrigerated Display Case Condensers: Fan duty on refrigerated display case condensing units in supermarkets and food service, replacing legacy ECM X-13 motors.
• Condensing Unit Fans: Replacement condenser motor service on remote condensing units with NEMA 48 frame mounting for commercial refrigeration systems, keeping heat rejection steady across ambient swings.
• Custom OEM Refrigeration: Integrates into proprietary condensing decks with tailored shafts, harnesses and control profiles through the in-house engineering team.

Commercial Value & Partnership Benefits

Refrigeration contractors and condensing unit manufacturers need a motor supplier that understands continuous condenser duty. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC and refrigeration industry for more than 20 years, holds more than 100 patents and is recognized as a National High-Tech Enterprise. The company operates a 25,000-square-meter facility with in-house tooling, metal stamping, injection molding, CNC machining and final motor assembly, supporting stable volume supply, in-process quality management and competitive pricing. Products are sold in more than 20 countries and regions, and ISO 9001, UL, CCC, CE and RoHS documentation should be confirmed against the specific model.

Flexible MOQ and prompt sample fulfillment let customers validate this 3/4HP ECM motor on their condensing decks before volume orders. Engineering support covers custom wiring, connector layouts, private labeling and supply agreements, helping refrigeration OEMs integrate this refrigeration ECM motor into condenser fan motor and commercial refrigeration motor programs with defined lead times.
