1/4HP 277V 1075RPM Direct Replacement 5 Speed 24VAC Control HVAC Residential Furnace Blower ECM Motor

Product Overview (Brief Summary)

When HVAC contractors need a dependable motor upgrade for residential furnaces, the 1/4HP 277V ECM motor provides a direct replacement solution for residential HVAC blower motor applications. This 1075RPM ECM motor uses a standard NEMA 48 frame with matching mounting hole patterns, belly-band grooves and harness connectors, so it drops into existing air handlers and replaces legacy units such as the 5520ET, 5521ET and 5522ET series, as well as older Genteq X13, Emerson and US Motors blowers, without bracket modification. A 5-speed 24VAC interface with constant torque motor behavior keeps airflow steady through heating cycles, while universal multi-voltage support (110-120V, 208-230V and 277V) fits common regional grids. This ECM furnace blower motor from Zhongshan Pengfei Electric Appliance Co., Ltd. combines quiet operation and dependable long-term performance.

Detailed Description

The move from traditional permanent split capacitor (PSC) motors to electronically commutated motor (ECM) technology has changed how residential climate equipment manages airflow. This 1/4HP ECM motor acts as a practical bridge between older furnace systems and current energy expectations. Built on permanent magnet brushless direct current (BLDC) principles, the unit maintains steady rotation and adjusts torque delivery as static pressure in the ductwork changes, which helps this furnace blower motor keep airflow consistent through heating and cooling cycles. As a variable speed DC brushless motor, it adjusts output to match demand rather than cycling at a fixed speed.

Each 277V ECM motor is produced in a 25,000-square-meter facility with precision CNC machinery and dedicated testing labs. Components, from stator windings to the D-shaped output shaft, are checked against structural and electrical tolerances before shipment. This 24VAC speed control motor supports consistent system reliability and simpler field maintenance, while the constant torque motor design contributes to efficient operation across varied conditions. Whether you are servicing a residential furnace or building a fresh air unit, this ECM furnace blower motor is designed for daily heating duty.

Key Features & Practical Benefits

• True Plug-and-Play Direct Replacement: Engineered around a standard NEMA 48 frame with identical mounting hole patterns, belly-band grooves and standard harness connectors, this replacement blower motor lets technicians swap out older Genteq X13, Emerson or US Motors units without altering existing brackets. It also covers the 5520ET, 5521ET and 5522ET series, simplifying service fleet inventory.
• 5-Speed 24VAC Tap Control: The motor ships with five discrete 24VAC speed taps (S1 to S5) in constant torque mode, with optional 0-10V analog and PWM digital signal control. This 24VAC speed control interface suits furnace blower motor, air handler and fresh air unit designs that use standard HVAC controls.
• Multiple Power Ratings: Available in 1/4HP, 1/3HP, 1/2HP, 3/4HP and 1HP on the same NEMA 48 frame, this ECM motor lets distributors consolidate inventory while matching the correct power rating to each residential furnace blower motor application.
• Low-Noise Operation: Aerodynamic optimization and smooth electronic commutation help limit vibration and noise, making this HVAC blower motor well suited to quiet residential living spaces and light commercial environments.
• Universal Multi-Voltage and Circuit Protection: As a multi-voltage motor, this ECM motor accepts 110-120V, 208-230V and 277V inputs, covering common regional grids. Built-in thermal overload monitoring, locked-rotor defense and surge suppression help protect this ECM motor during unexpected power events.

Technical Advantages & Engineering Expertise

Selecting an air-moving component requires attention to thermal management, mechanical fit and operational stability. This ECM motor is engineered around those three concerns.

1. Advanced Thermal Safeguards: Internal windings are protected by thermal sensors and active surge suppression, which helps protect this ECM motor from localized overheating during peak heating or cooling cycles.
2. Maintained Airflow Efficiency: Unlike fixed-speed PSC motors, whose airflow can drop sharply against high static pressure, this 1075RPM ECM motor adjusts electronic commutation dynamically to keep this HVAC blower motor's airflow steadier. In a constant torque motor, the controller monitors load and adjusts power to maintain target torque, which is why ECM motor technology is widely used in modern climate equipment.
3. Custom OEM and ODM Flexibility: An in-house research and development center supports custom shaft lengths, keyways, private label branding and tailored wiring connectors, so OEM customers can integrate this HVAC blower motor into proprietary equipment with specific mounting and control requirements.

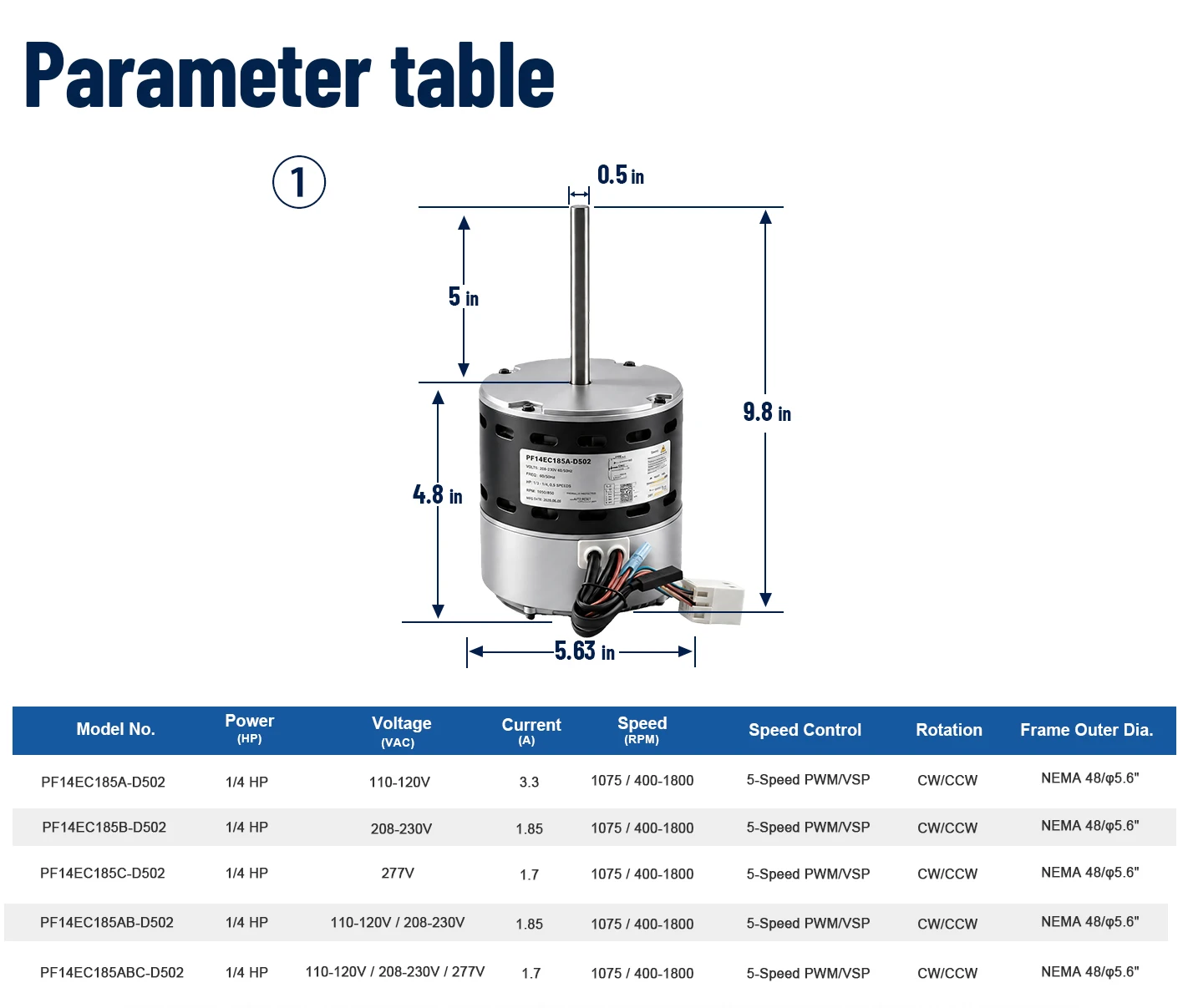

Technical Specifications Table

Application Scenarios

This versatile 24VAC speed control motor is widely deployed across thermal management and ventilation setups:

• Residential Furnace Blower Upgrades: Direct drop-in replacement blower motor for standard upflow, downflow and horizontal air handlers.
• Commercial Ventilation and Fresh Air Units: Supplies reliable air movement for rooftop ventilation boxes and indoor air distribution modules.
• Condenser Fan Assemblies: Serves outdoor split-system air conditioners and heat pump systems where weather-resistant performance matters; a dependable condenser fan motor keeps the system moving air.
• Custom OEM Air Handlers: Integrates into newly manufactured climate control equipment that requires precise torque regulation.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. The company manages tooling, metal stamping, injection molding and final motor assembly in-house, supported by a 25,000-square-meter facility, an independent R&D center and dedicated testing labs. This vertical integration supports stable volume supply and competitive pricing for bulk buyers, and its products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation that should be confirmed against the specific model.

Pilot testing programs with flexible minimum order quantities (MOQ) and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume. Engineering support covers custom wiring layouts, private label options and volume supply agreements, helping HVAC distributors and OEM equipment builders match this HVAC blower motor to regional voltage requirements and fleet replacement programs.
