1/3HP 110-120V/208-230V 1075RPM Replacement ECM X-13 6103E 5522ET 5532ET 5542ET CW/CCW Reversible HVAC Furnace Blower EC Motor

Product Overview (Brief Summary)

For technicians who want one motor that fits either rotation direction, this 1/3HP dual-voltage ECM motor with CW/CCW reversible rotation simplifies stock. It replaces the X13, 6103E, 5522ET, 5532ET and 5542ET series on a standard NEMA 48 frame with unchanged mounting, runs at 1075RPM, and accepts 110-120V or 208-230V service as a dual-voltage ECM motor. Reversible rotation means this reversible blower motor can be set for the blower wheel direction found in the equipment, reducing the chance of ordering the wrong shaft rotation. Constant torque control with 24VAC tap control keeps airflow steady on this ECM motor. This ECM motor from Zhongshan Pengfei Electric Appliance Co., Ltd. pairs a quiet operating profile with sturdy construction intended for years of climate duty.

Detailed Description

Technicians replacing a PSC blower motor with an electronically commutated motor gain tighter speed control, and this 1/3HP ECM motor keeps the furnace blower motor benefits simple while adding reversible rotation that makes the swap easier on the bench. The brushless direct current design is electronically commutated, so rotation is controlled digitally and this ECM motor can change direction cleanly, which is what makes it a reversible blower motor. A rotation setting on this ECM motor matches the shaft direction to the blower wheel, covering upflow, downflow or horizontal furnace blowers from one part. This reversible blower motor is a useful fit for fleets that service furnaces and air handlers with mixed shaft rotations, so one part covers more furnace blower motor and HVAC blower motor callouts than a fixed-rotation unit.

Built in a 25,000-square-meter facility with precision CNC machinery and testing labs, each ECM motor is checked for tolerances before shipment. Five 24VAC speed taps operate in constant torque mode, and this ECM motor's multi-voltage input covers 110-120V, 208-230V and 277V grids. The D-shaft fits standard blower wheels, so the same NEMA 48 frame motor installs without extra hardware. For service trucks, one reversible ECM motor can cover more furnace blower motor and air handler callouts than a fixed-rotation part.

Key Features & Practical Benefits

• CW/CCW Reversible Rotation: Set the shaft direction to match the blower wheel before installation, covering upflow, downflow and horizontal furnace blowers with one part number, so this ECM motor covers CW and CCW requirements in a single stock item.
• Dual-Voltage Multi-Speed Control: Accepts 110-120V and 208-230V (with 277V available), with five 24VAC taps (S1 to S5) in constant torque mode. With constant torque behavior, this constant torque motor maintains consistent turning force through the heating cycle.
• Direct Replacement Fit: NEMA 48 frame with identical mounting patterns, belly-band grooves and harness connectors covers X13, 6103E, 5522ET, 5532ET, 5542ET, Emerson and US Motors blowers as a direct replacement motor for common HVAC blower motor series.
• Quiet Operation: Digital commutation and a balanced rotor design keep noise and vibration low on this DC brushless motor.
• Built-In Protection: Thermal overload, locked-rotor and surge protection are built in, covering this ECM motor against common electrical faults.

Technical Advantages & Engineering Expertise

This ECM motor is engineered for the realities of field replacement, where fit, airflow behavior and long-term reliability decide whether a job sticks.

1. Reliability Engineering: This ECM motor includes thermal monitoring and surge suppression to support safe operation during long peak-season runs.
2. Airflow Stability: Constant torque motor control keeps this HVAC blower motor's air delivery steady as filters load and registers open or close.
3. Custom Engineering: Shaft length, flats, keyways, labeling and connectors on this ECM motor can be tailored to OEM air handler programs.

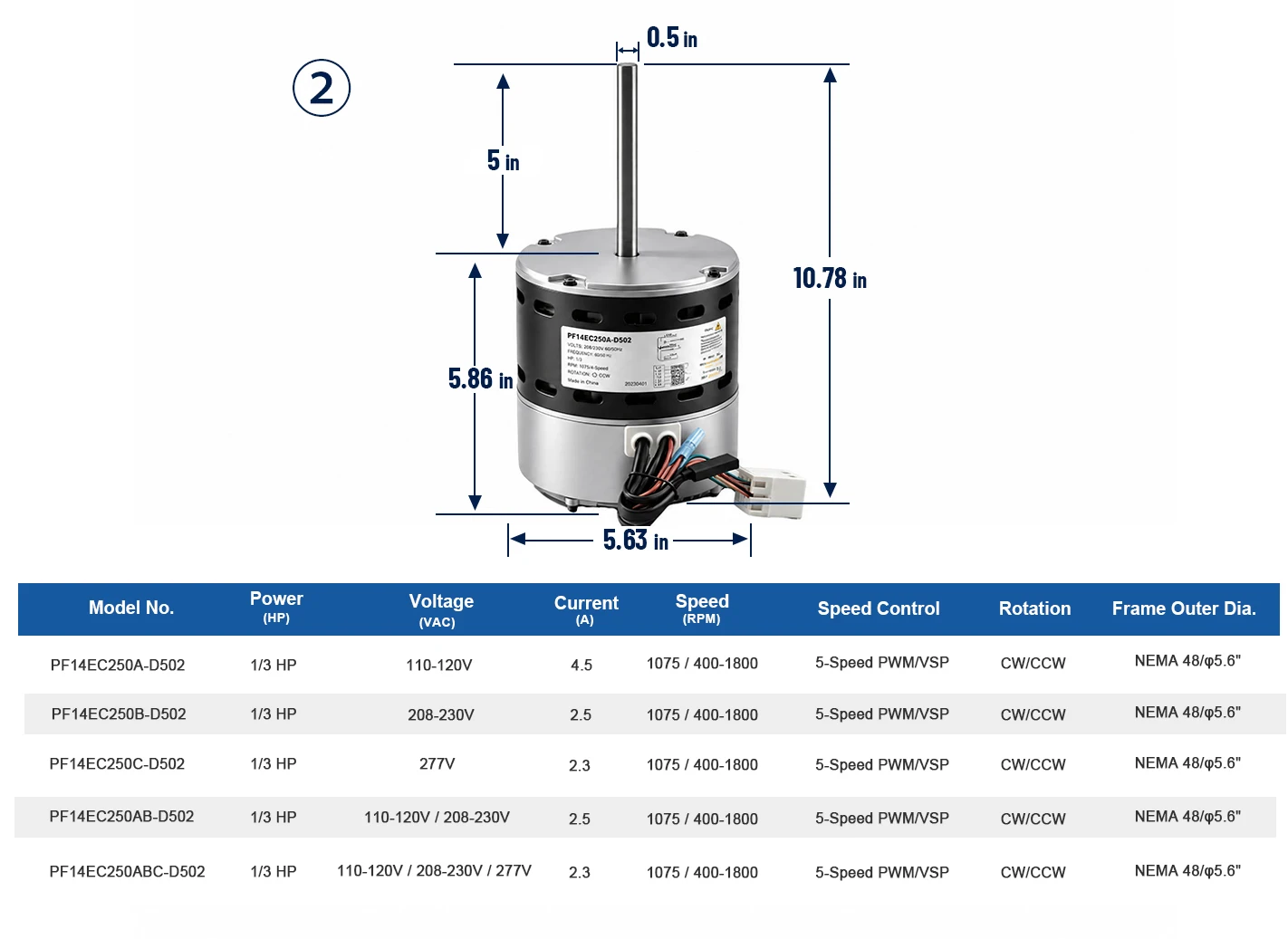

Technical Specifications Table

Application Scenarios

This 24VAC tap control motor fits blower roles where rotation direction and voltage vary from job to job, acting as a multi-voltage reversible blower motor:

• Furnace Blowers with Mixed Rotation: One reversible motor covers CW and CCW shaft requirements.
• Air Handler Blowers: Serves residential and light commercial air handlers at 1075RPM as a dependable replacement blower motor.
• Condenser Fan Assemblies: Fits outdoor air conditioner and heat pump condenser fan duty as a condenser fan motor.
• Custom OEM Air Handlers: Integrates into new climate equipment requiring precise torque regulation from this ECM motor.

Commercial Value & Partnership Benefits

For equipment distributors, wholesale buyers and HVAC service contractors, sourcing dependable ECM motors protects brand reputation and limits costly field callbacks. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years and is recognized as a National High-Tech Enterprise holding more than 100 patents. In-house tooling, metal stamping, injection molding and motor assembly are supported by a 25,000-square-meter facility and dedicated testing labs, and products are sold in more than 20 countries and regions with ISO 9001, UL, CCC, CE and RoHS documentation.

Pilot testing programs with flexible MOQ and prompt sample fulfillment let customers evaluate this ECM motor before committing to volume, and engineering support covers custom wiring, private labeling and volume supply agreements.
