OEM 3/4HP 110-120V 1075RPM Replacement Constant Torque ECM X-13 5SME39NXL425 6207E 6207X 6210X 5540ET 5541ET 5542ET ECM Motor

Product Overview (Brief Summary)

Equipment manufacturers building furnaces and air handlers need a 3/4HP ECM motor that integrates into existing designs and matches OEM part numbers. This OEM 3/4HP ECM motor is built for that role: it runs at 1075RPM on the standard NEMA 48 frame with matching mounting holes and belly-band grooves, and serves as a direct replacement blower motor for legacy constant torque units in the Genteq X13, 5SME39NXL425, 6207E, 6207X, 6210X, 5540ET, 5541ET and 5542ET series. As a variable speed motor with 110-120V input, it suits North American residential furnace and air handler platforms, while 24VAC tap control gives the OEM designer or service contractor a dependable way to set airflow. This constant torque ECM motor from Zhongshan Pengfei Electric Appliance Co., Ltd. combines dependable HVAC blower motor performance with production capacity and custom engineering for equipment builders.

Detailed Description

ECM motor technology holds blower output steadier than PSC designs, which is why modern furnaces use it. This 3/4HP ECM motor applies permanent magnet brushless DC (BLDC) construction, and the controller adjusts electronic commutation so torque stays close to the set point as static pressure varies. For an equipment manufacturer, steady air delivery means fewer field complaints about airflow, and the constant torque ECM motor behavior protects the blower wheel across a range of duct conditions.

From the OEM perspective, fit and wiring matter as much as performance. The D-shaft output, NEMA 48 frame and 5-pin harness arrangement follow the conventions used by legacy 6207E and 5SME39NXL425 units, so this OEM ECM motor can be specified into existing blower decks with limited re-engineering. Production runs at a 25,000-square-meter facility covering tooling, metal stamping, CNC machining, injection molding and final assembly, and every unit passes structural and electrical checks before shipment. As a multi-speed ECM motor, five 24VAC speed taps and optional 0-10V or PWM control give integrators flexibility for retrofit and new-build programs.

Key Features & Practical Benefits

• OEM Drop-In Design: The NEMA 48 frame, D-shaft and harness layout follow the conventions of legacy 5SME39NXL425, 6207E, 6207X, 6210X and 554xET units, so this replacement blower motor fits existing blower decks with limited re-engineering.
• Cross-Series Coverage: One replacement blower motor number covers a family of legacy constant torque models, simplifying part lists for OEMs that service multiple equipment platforms.
• Constant Torque Speed Taps: Five 24VAC taps (S1 to S5) run in constant torque mode, and optional 0-10V analog or PWM control supports advanced system integrations.
• Quiet Operation: This ECM motor runs smoothly and the rotor is balanced, keeping vibration and noise low in occupied spaces.
• Built-In Protection: Thermal overload monitoring, locked-rotor protection and surge suppression are integrated into the motor control board.

Technical Advantages & Engineering Expertise

For OEM buyers, the value of a 3/4HP ECM motor lies in how predictably it integrates: thermal behavior, mechanical fit and wiring compatibility decide whether a design works on the first build.

1. Thermal Management: Smart winding sensors and active surge suppression reduce the chance of localized overheating during peak cooling or heating demand.
2. Airflow Consistency: Electronic commutation adjusts torque as static pressure changes, so this HVAC ECM motor holds blower output closer to target than PSC designs on the same deck.
3. Custom OEM and ODM Engineering: Custom shafts, keyways, private label branding and tailored connector layouts are available through the in-house R&D center, with samples validated against the customer's blower and ducting before volume runs.

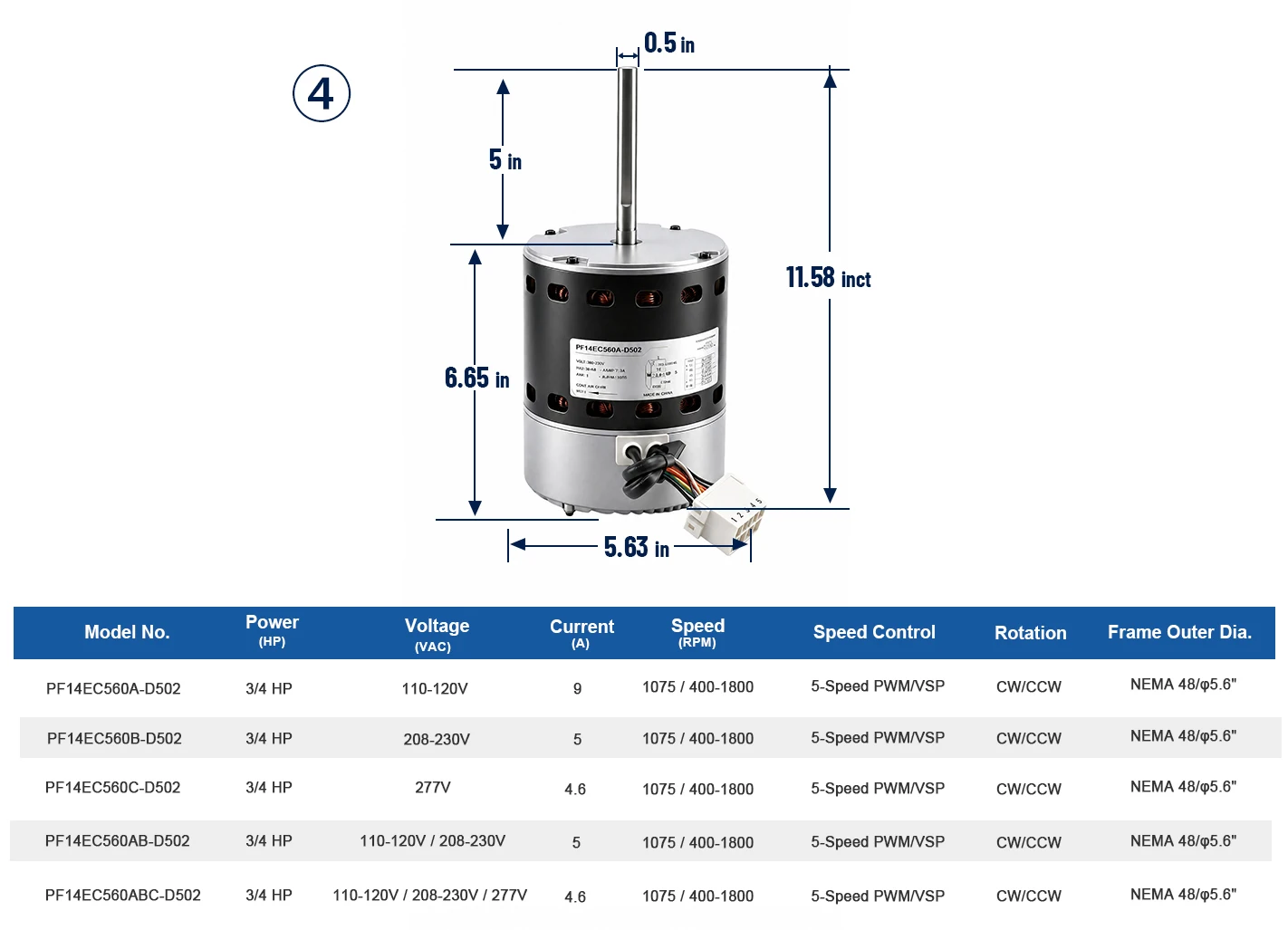

Technical Specifications Table

Application Scenarios

This 3/4HP HVAC ECM motor is specified across a range of platforms:

• Furnace Blower Platforms: Fits upflow, downflow and horizontal furnace blower decks as a dependable furnace blower motor for OEM new builds and field replacements.
• Air Handler and Fan Coil Units: Serves AHU and fan coil air handler blower motor duty in residential and light commercial equipment, covering legacy 6207E and 5SME39NXL425 platforms.
• Condenser Fan Duty: Supports outdoor split-system air conditioners and heat pumps where a reliable condenser fan motor keeps the system moving air.
• Custom OEM Integrations: Adapts to proprietary blower decks with tailored shafts, harnesses and control profiles through the in-house engineering team.

Commercial Value & Partnership Benefits

OEM buyers value a motor supplier that can hold tolerances, hit delivery dates and support custom programs. Zhongshan Pengfei Electric Appliance Co., Ltd. has focused on the HVAC industry for more than 20 years, holds more than 100 patents and is recognized as a National High-Tech Enterprise. The company operates a 25,000-square-meter facility with in-house tooling, metal stamping, injection molding, CNC machining and final motor assembly, supporting stable volume supply, in-process quality management and competitive pricing. Products are sold in more than 20 countries and regions, and ISO 9001, UL, CCC, CE and RoHS documentation should be confirmed against the specific model.

Flexible MOQ and prompt sample fulfillment let OEM teams validate this 3/4HP ECM motor before committing to volume. Engineering support covers custom wiring, connector layouts, private labeling and supply agreements, so equipment builders can integrate this OEM ECM motor into furnace blower motor, air handler blower motor and HVAC blower motor programs with defined lead times.
